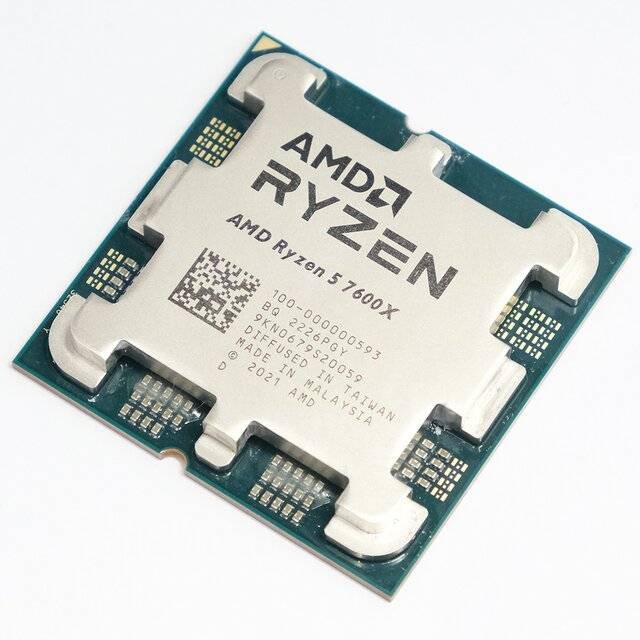

AMD Ryzen 5 7600X Processor (Box)AMD Ryzen 5 7600X Processor (Box)

• CPU Cores: 6
• Base Clock Speed: 4.7GHz.

General Specifications

• Name: AMD Ryzen™ 5 7600X
• Family: Ryzen
• Series: Ryzen 7000 Series
• Form Factor: Desktops , Boxed Processor
• Market Segment: Enthusiast Desktop
• Former Codename: Raphael AM5
• Architecture: Zen 4
• # of CPU Cores: 6
• Multithreading (SMT): Yes
• # of Threads: 12
• Max. Boost Clock : Up to 5.3 GHz
• Base Clock : 4.7 GHz
• L1 Cache: 384 KB
• L2 Cache: 6 MB
• L3 Cache: 32 MB
• Default TDP: 105W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• CPU Compute Die (CCD) Size: 71mm²
• I/O Die (IOD) Size: 122mm²
• Package Die Count: 2
• Unlocked for Overclocking : Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620 , X670E , X670 , B650E , B650
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Thermal Solution (PIB): Not Included
• Recommended Cooler: Premium air cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 95°C
• OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 3.2 Gen 1 (5Gbps) Ports: 0
• Native USB 2.0 (480Mbps) Ports: 1
• Native SATA Ports: 0
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28 , 24
• NVMe Support: Boot , RAID0 , RAID1 , RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 128 GB
• System Memory Subtype: UDIMM
• Max Memory Speed 2x1R: DDR5-5200
• ECC Support: Yes (Requires mobo support)

Graphics Capabilities

• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes

Key Features

• Supported Technologies: AMD EXPO™ Technology , AMD Ryzen™ Technologies

:
