ATEN KA7970 USB VGA KVM Adapter Cable with 4.5m Cat 5, Hot-Pluggable, 1600×1200 Resolution, Keyboard & Mouse Emulation

Product Description:

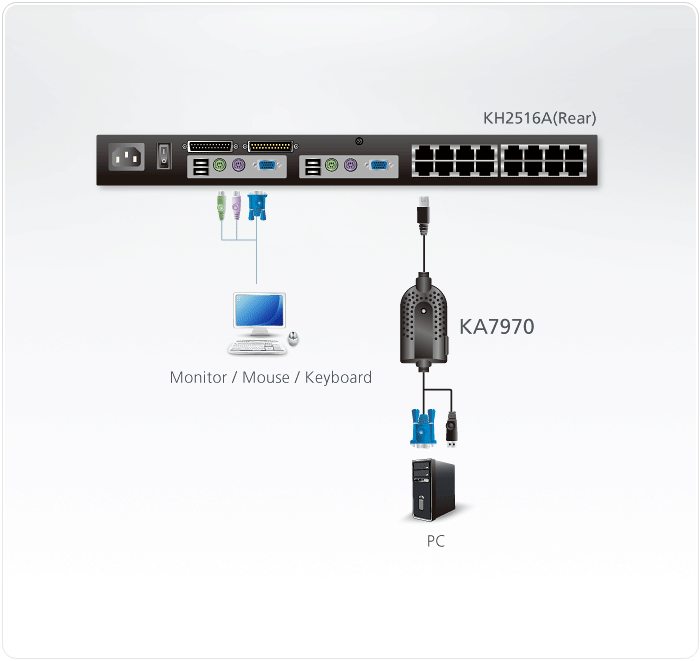

The ATEN KA7970 is a compact USB VGA KVM adapter cable designed for seamless server management in rackmount and desktop setups. Built with a 4.5-meter integrated Cat 5 cable, it ensures reliable performance and optimal video quality up to 1600 x 1200 resolution. This adapter supports keyboard and mouse emulation, hot-pluggable functionality, and lifetime firmware upgrades, making it an essential tool for small to mid-sized KVM switch installations.

Key Features:

• USB VGA KVM adapter cable with built-in 4.5m Cat 5 cable
• Keyboard and mouse emulation – maintains server functionality during disconnection or relocation
• Superior video quality – supports resolutions up to 1600 x 1200 within a 4.5m range
• Hot-pluggable – add or remove servers without needing to power down the KVM switch
• Compact and lightweight design for easy deployment
• Lifetime firmware upgrades supported

Specifications:

• Model: KA7970
• Connectors:
• Link: 1 x RJ-45 Male with 4.5m Cat 5 cable
• Computer: 1 x USB Type-A Male, 1 x HDB-15 Male (VGA)
• LED Indicator: 1 x Online (Orange)
• Video Resolution: Up to 1600 x 1200
• Emulation: Keyboard and mouse
• Hot Pluggable: Yes
• Operating Temperature: 0 – 50°C
• Storage Temperature: -20 – 60°C
• Material: Plastic housing
• Dimensions: 7.93 x 3.70 x 1.55 cm (3.12 x 1.46 x 0.61 in.)
• Weight: 0.24 kg (0.53 lb)
