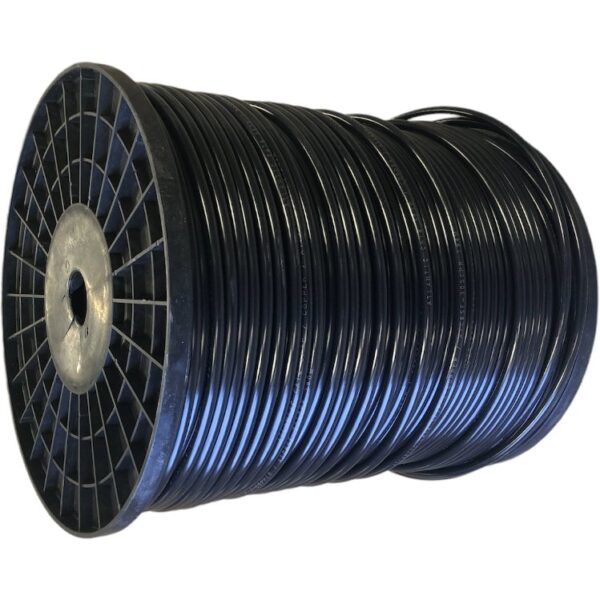

Atlantic CAT6 S/FTP Outdoor Ethernet Cable 305M – 23AWG Solid Bare Copper, Double Shielded, PE Jacket, CPR Rated – ATL-C6-C012
260,000 د.ع
الوصف

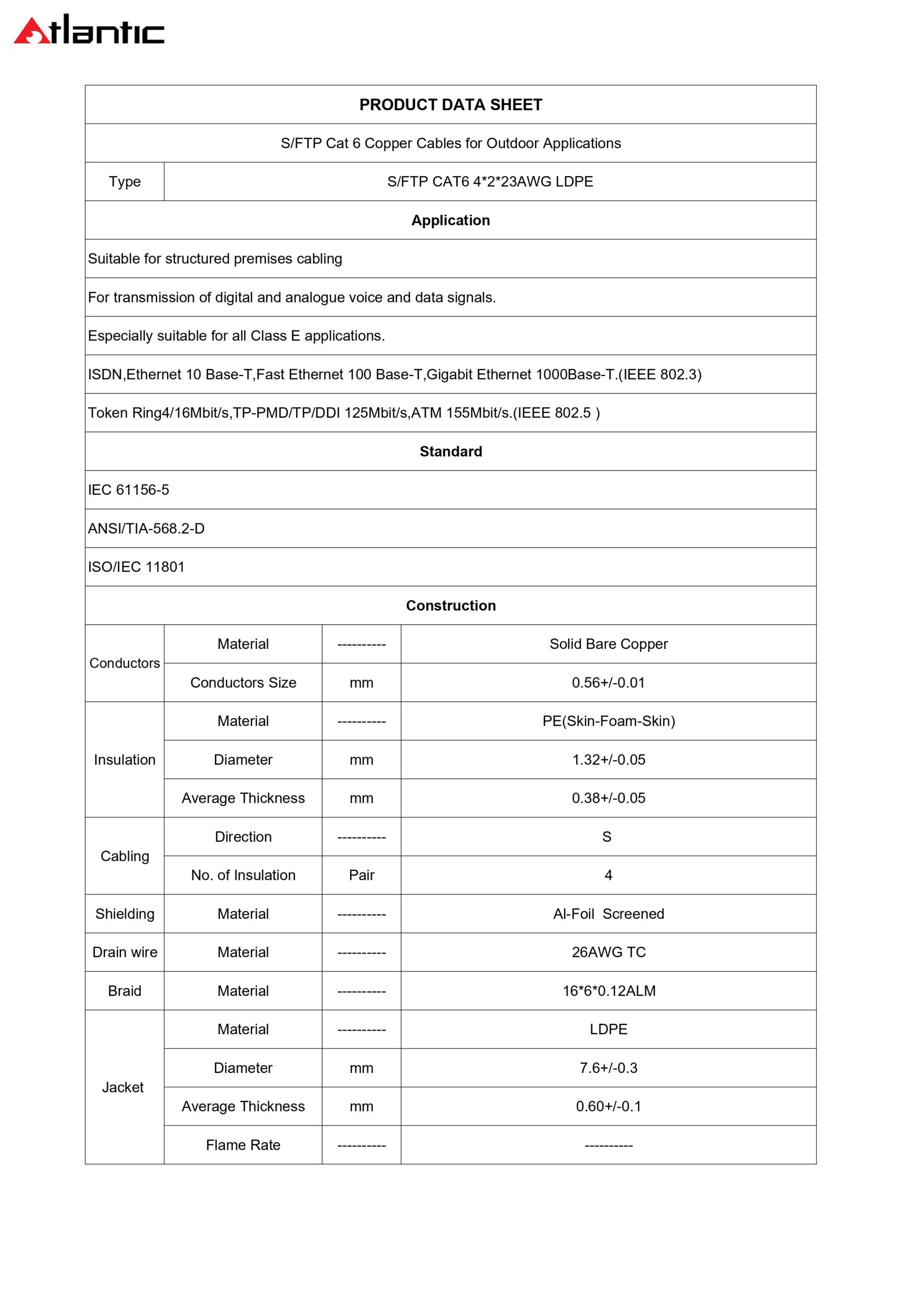

Type: S/FTP CAT6 4*2*23AWG LDPE
Application
- Structured premises cabling
- Transmission of digital and analogue voice and data signals
- Suitable for all Class E applications
- ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T (IEEE 802.3)
- Token Ring 4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s (IEEE 802.5)
Standards
- IEC 61156-5
- ANSI/TIA-568.2-D
- ISO/IEC 11801
Construction
- Conductor: Solid Bare Copper, 0.56mm ± 0.01
- Insulation: PE (Skin-Foam-Skin), Diameter: 1.32mm ± 0.05, Thickness: 0.38mm ± 0.05
- Cabling: Direction: S, 4 Pairs
- Shielding: Al-Foil Screened
- Drain Wire: 26AWG TC
- Braid: 16*6*0.12ALM
- Jacket: LDPE, Diameter: 7.6mm ± 0.3, Thickness: 0.60mm ± 0.1

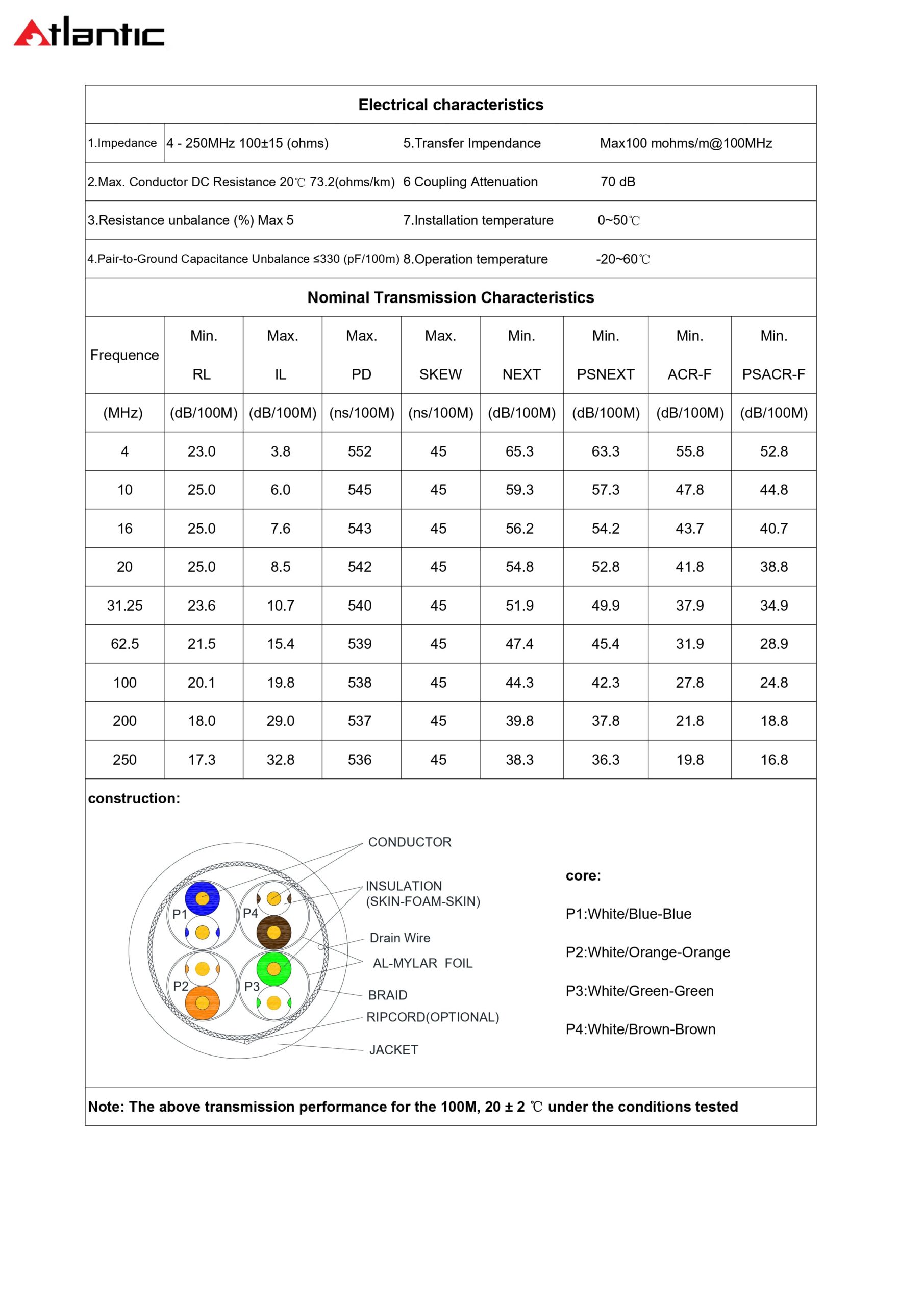

Electrical Characteristics
- Impedance: 100±15 ohms (4 – 250MHz)
- Max Conductor DC Resistance: 73.2 ohms/km @ 20℃
- Resistance Unbalance: Max 5%
- Pair-to-Ground Capacitance Unbalance: ≤330 pF/100m
- Transfer Impedance: Max 100 mohms/m @ 100MHz
- Coupling Attenuation: 70 dB
- Installation Temp: 0℃ to 50℃
- Operation Temp: -20℃ to 60℃
Nominal Transmission Characteristics
| Frequency (MHz) | RL (dB/100M) | IL (dB/100M) | PD (ns/100M) | SKEW (ns/100M) | NEXT (dB/100M) | PSNEXT (dB/100M) | ACR-F (dB/100M) | PSACR-F (dB/100M) |
|---|---|---|---|---|---|---|---|---|
| 4 | 23.0 | 3.8 | 552 | 45 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25.0 | 6.0 | 545 | 45 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 25.0 | 7.6 | 543 | 45 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25.0 | 8.5 | 542 | 45 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 23.6 | 10.7 | 540 | 45 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 539 | 45 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.8 | 538 | 45 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 29.0 | 537 | 45 | 39.8 | 37.8 | 21.8 | 18.8 |
| 250 | 17.3 | 32.8 | 536 | 45 | 38.3 | 36.3 | 19.8 | 16.8 |
Core Color Code
- P1: White/Blue-Blue
- P2: White/Orange-Orange
- P3: White/Green-Green
- P4: White/Brown-Brown
Note: The above transmission performance for the 100M, 20 ± 2 ℃ under the conditions tested.
