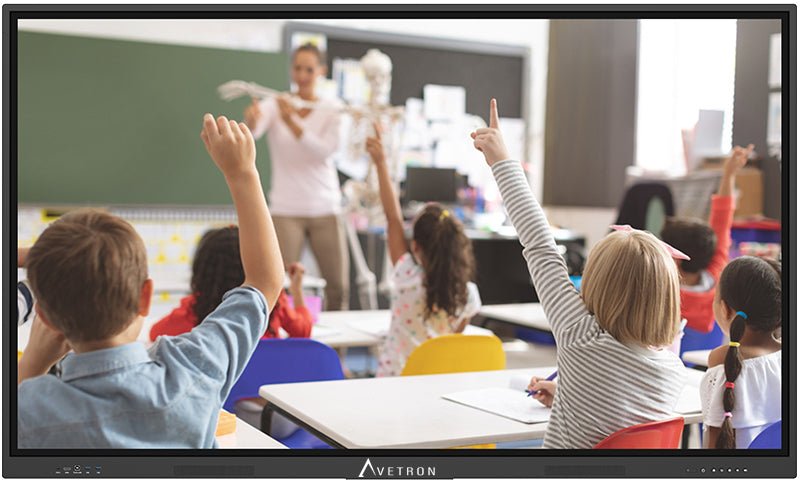

Avetron Interactive Panel Notion Series – 75″

DISPLAY

• Screen Size: 65”, 75”, 86”, 98″
• Resolution: 3840 x 2160
• Screen Type: D-LED
• Response Time: 8 ms
• Refreshing Frequency: 60 Hz
• Brightness: 350cd/m² (min)
• Display Colour: 1.07B
• Pixel Pitch: 0.372(H) x 0.372(V)
• Contrast Ratio: (TYP) 1200:1
• Viewing Angle: 178° (H) / 178° (V)
• Lifetime: 50,000 hours

Active Area mm:

• 65” : 1428.48 X 803.52
• 75” : 1649.66 X 927.93
• 86” : 1895.04 X 1065.96

TOUCH

• Sensing Type: Infrared Touch Frame
• Touch Points: 40 Points
• Response Time: 8 ms
• Touch Resolution: 32768 x 32768
• Touch Accuracy: (±1mm)
• Windows 11/10/8/7, Android: Multiple Touch
• Windows XP, Linux, Mac OSX, Chrome: Single Touch
• Connect Type: USB

ANDROID SYSTEM

• Chipset: A311D2
• Architecture Cortex: A73 + A53
• Working Frequency: Max 2.2GHz for big and 2.0GHz for little
• Core: 4 A73 (Quad core A73) + 4 A53 (Quad core A53)
• GPU: Mali G52 MP8
• RAM: 8 GB
• ROM: 128 GB
• OS: Android 13.0

POWER

• Power Requirements: AC 100V ~ 240V, 50/60 Hz
• Power Consumption Without OPS: 300 W
• Standby Condition: <0.5W
• Audio Output Power: 2x15W/8Ω
• OPS Power DC: 18V/5A

WIFI

• Main Chipset: Mediatek MT7663B
• Operating Frequency: 2.4GHz/5GHz
• WI-FI Standard: 802.11a/b/g/n/ac
• Bluetooth: 2.1+EDR/4.2/5.1

AUDIO

• Speaker Type: Built-in Speaker
• Output Power: 15W x 2

DISPLAY CONNECTORS

• HDMI IN: 3
• DP IN: 1
• Type-C: 2
• VGA IN: 1
• AUDIO IN: 1
• LAN: 2
• USB2.0: 1
• USB3.0: 4
• TOUCH: 4
• MIC IN: 1
• SPDIF: 1
• RS232 IN: 1
• AUDIO OUT: 1
• HDMI OUT: 1
• OPS Slot: 1

ACCESSORIES

• Remote Control: 1
• Touch Pen: 2
• Power Cord (3 meter): 1
• USB A-B Cable (3 meter): 1
• HDMI Cable (3 meter): 1
• Qualified Certificate Label: 1
• Instruction: 1
• Warranty Card: 1
• Wall Mount: 1
