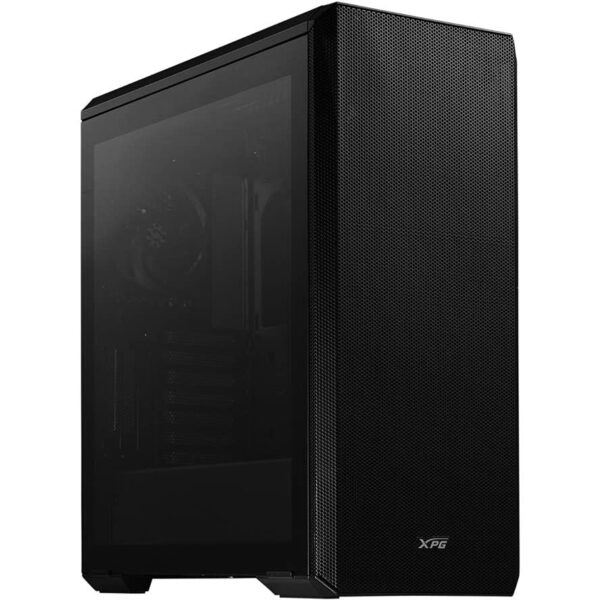

XPG Defender Mid-Tower ATX MESH Front Panel Tempered Glass PC Case
XPG Defender Mid-Tower ATX MESH Front Panel Tempered Glass PC Case السعر الأصلي هو: 115,000 د.ع.السعر الحالي هو: 94,000 د.ع.
Back to products

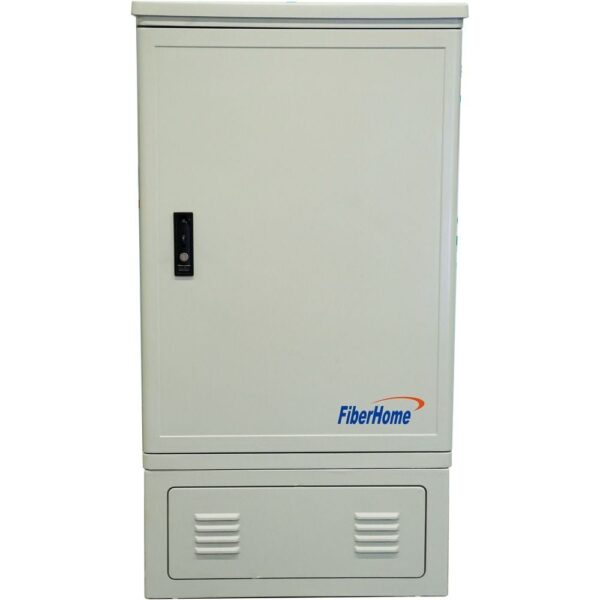

FiberHome GXF5-144 Fiber Distribution Hub – 144 Core, RP12 Tray, SC/APC, Compact Splitter Ready, IP65, 1130×570×310mm, Front Access
FiberHome GXF5-144 Fiber Distribution Hub – 144 Core, RP12 Tray, SC/APC, Compact Splitter Ready, IP65, 1130×570×310mm, Front Access السعر الأصلي هو: 800,000 د.ع.السعر الحالي هو: 625,000 د.ع.

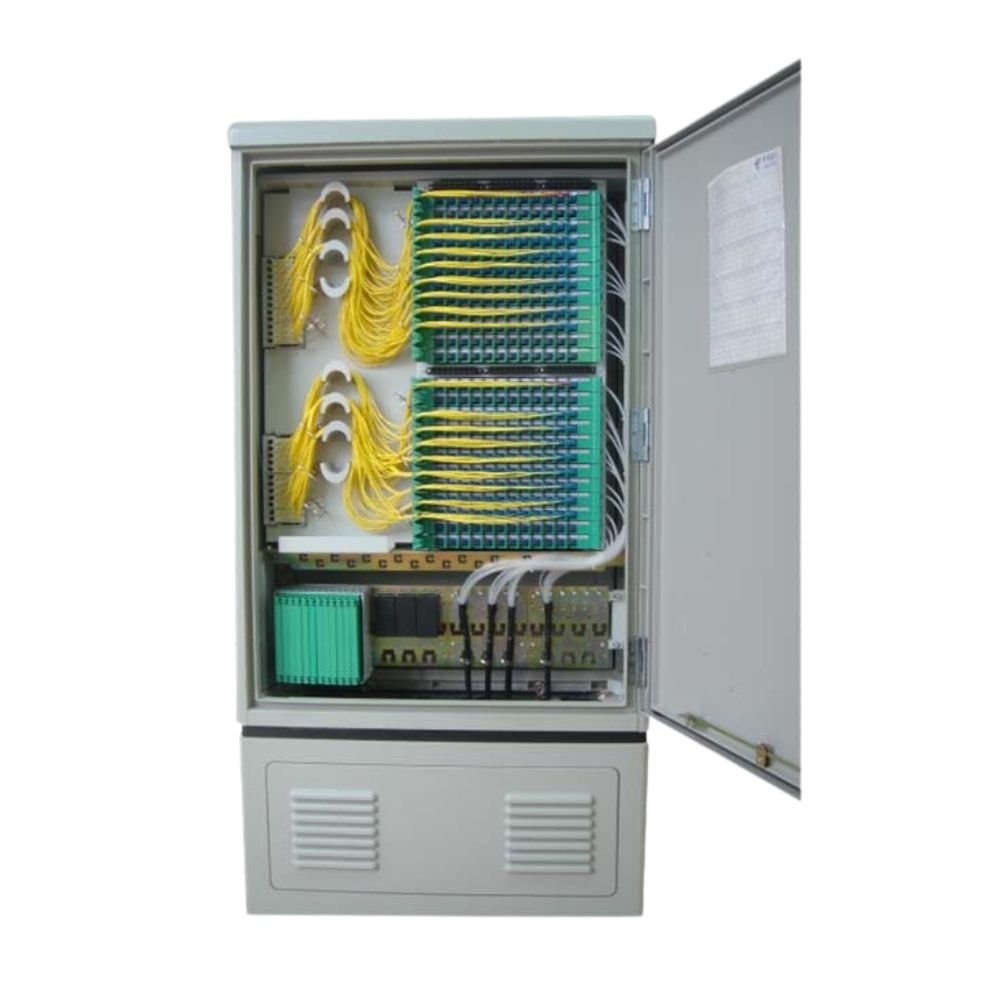

FiberHome GXF5-288 Fiber Distribution Hub – 288 Core, 24 RP12 Trays, SC/APC, 32 Splitter Slots, IP65, 1460×760×320mm, Outdoor Cabinet

السعر الأصلي هو: 1,365,000 د.ع.السعر الحالي هو: 1,078,000 د.ع.

رمز المنتج: 46660867916007 الوسم:
الوصف

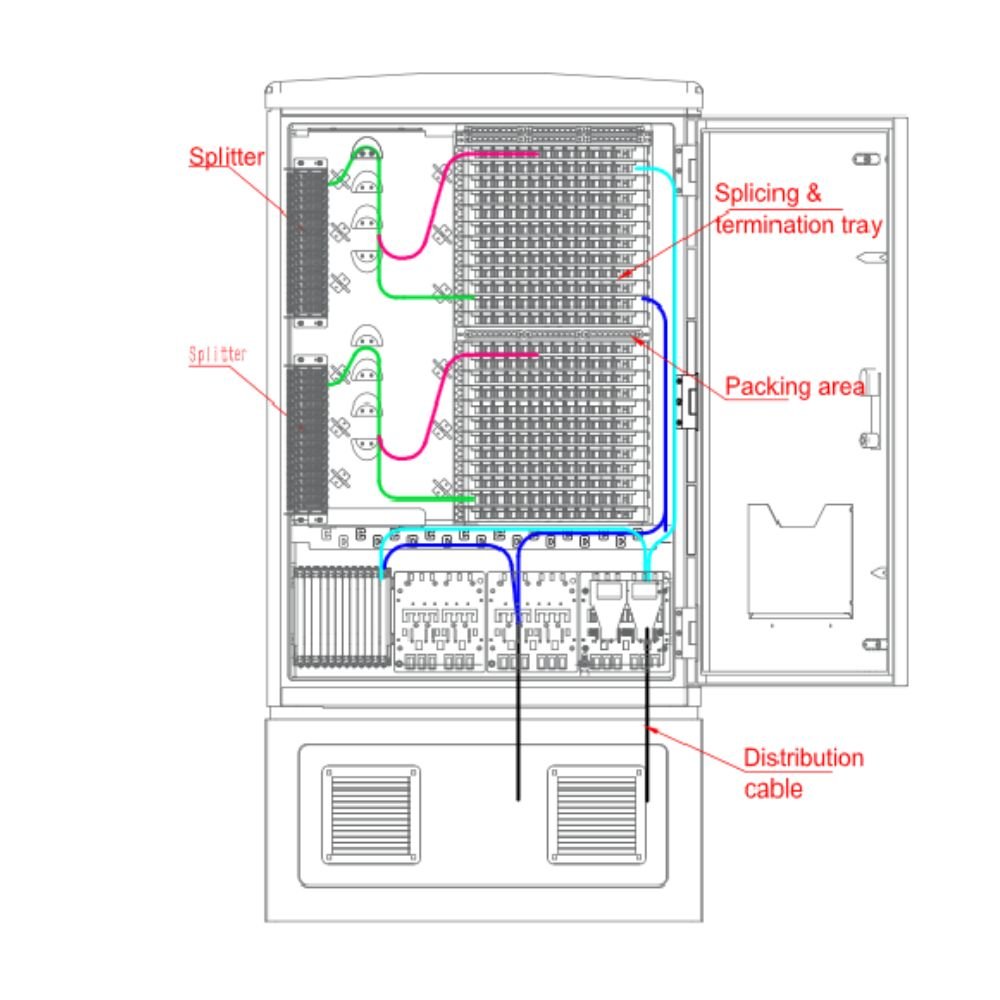

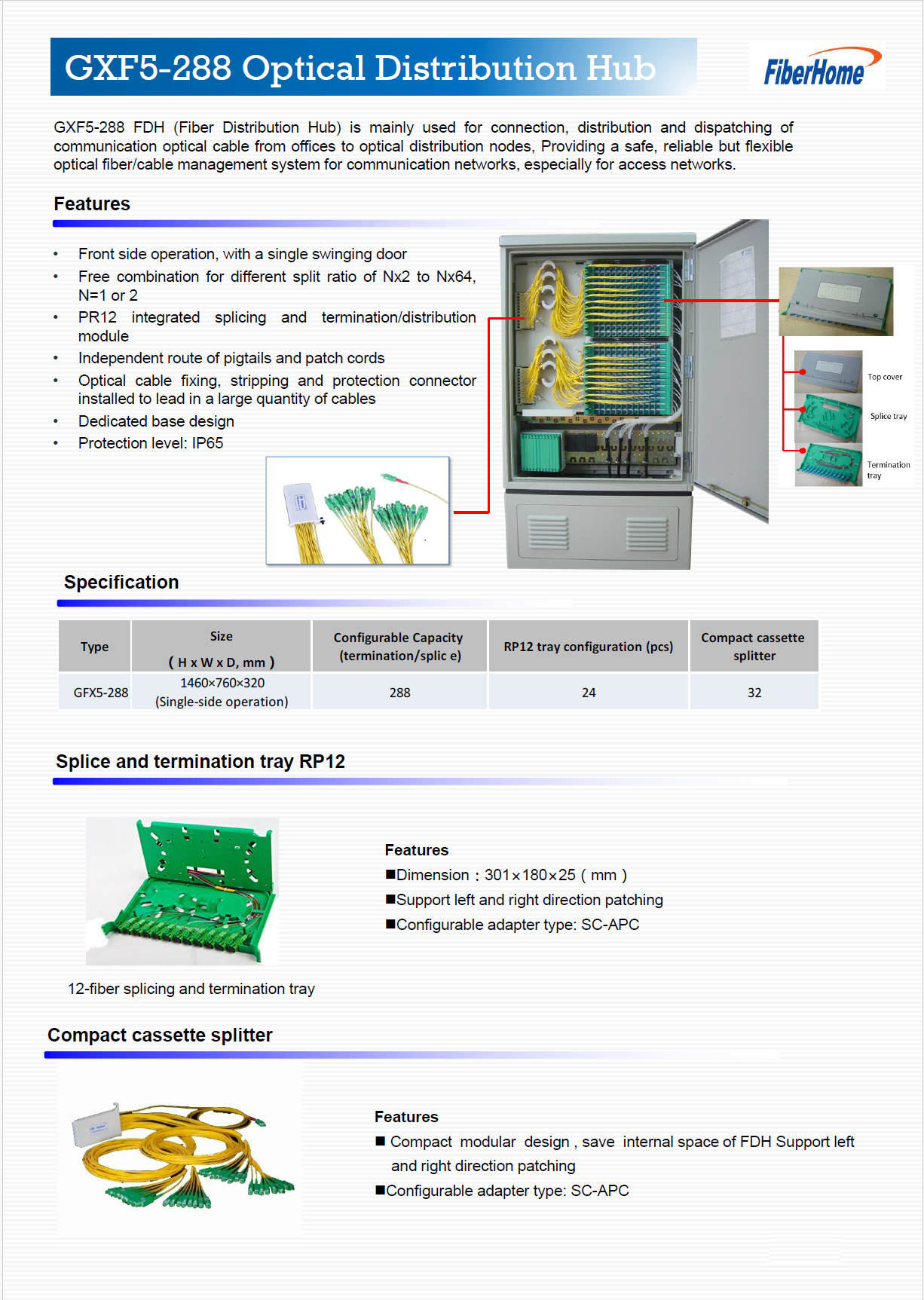

  • 288-core Fiber Distribution Hub (FDH) for access network optical cable management
  • Front-side single-door operation for quick and secure access
  • Supports split ratios from Nx2 to Nx64 (N = 1 or 2)
  • Equipped with 24 RP12 trays, each supporting 12-fiber splicing and termination
  • Tray dimensions: 301 × 180 × 25 mm
  • SC/APC configurable adapter type with left and right direction patching
  • Supports up to 32 compact cassette splitters in modular design
  • Independent routing of patch cords and pigtails to reduce tangling
  • Integrated optical cable fixing, stripping, and protection system
  • IP65 protection rating for reliable outdoor use
  • Cabinet dimensions: 1460 × 760 × 320 mm (H × W × D)
  • Dedicated base for pedestal mounting and structural stability
