FPMax 700W 80+ Bronze PSU (Full Modular)

Special Features:

• High Efficiency
• Low Noise Emission
• Stable output
• Long service life
• Various Interfaces

Specifications:

• Model: CM700 80Plus
• Version : Intel ATX 2.36
• Capacity : 750 watts continuous
• Ripple : Fit in ATX 2.36
• Noise: Less than 32 dba
• Cooling Fan : Single 12cm hydraulic press Fan
• Multiple Protections Function : OVP, UVP, OPP, SCP
• Safety Approve : TUV, CB, CE, FCC,Rohs, ,85+
• PFC Type : Active PFC
• Efficiency : 80 Plus Bronze
• P.G : 100~500 ms
• Hold-up Time : 16ms Min
• Input Voltage : 180~264V / OEM could option full range
• Input Freque : 47~63 Hz
• Output Watts : 750W
• Environment required :
• Operation Temperature : 0 ºC to 40 ºC
• Storage Temperature : -40 ºC to 80ºC
• Operation Humidity : 20% to 85%, non-condensing
• Storage Humidity : 10% to 95%, non-condensing
• MTBF : 35,000 Hrs minimum (at 25 ‘C)

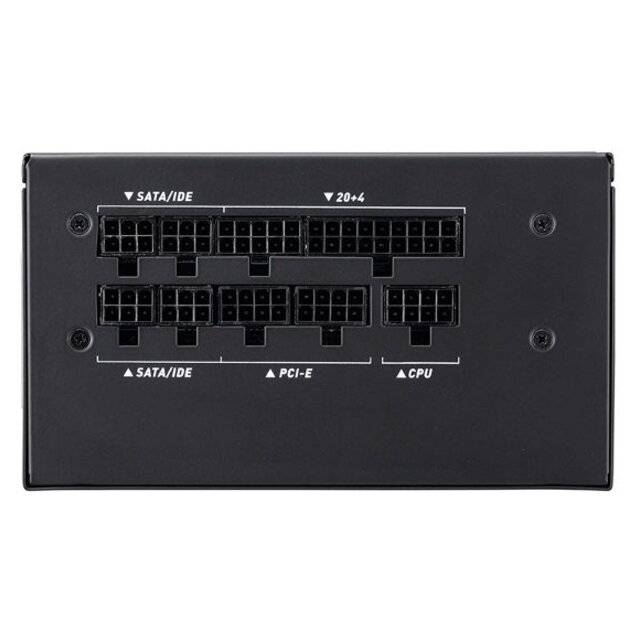

Connectors:

• Mainboard 20+4pin : x 1
• CPU 4+4pin : x 1+(4+4)pin
• PCI-E 6+2pin : x 2
• SATA : x 6
• Molex : x 2
• Fdd 4pin : x 1
• DC cable : Black-Flat DC cable
• Modular : Yes
