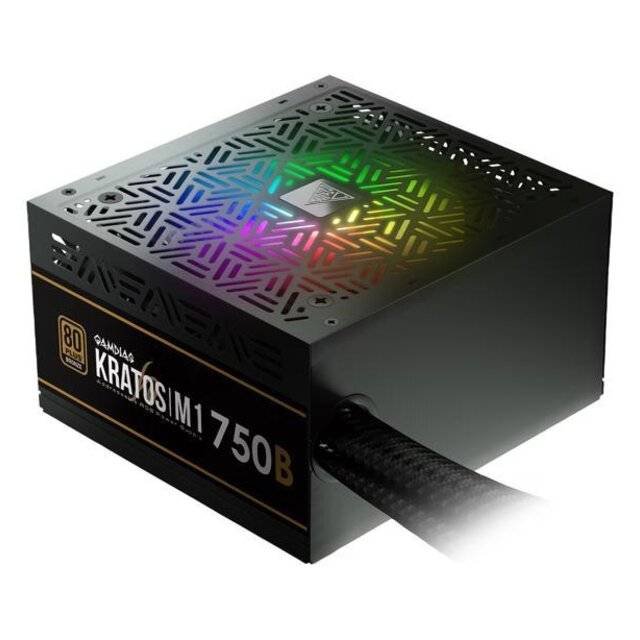

Gamdias M1-750B KRATOS RGB 750W BronzeGamdias M1-750B KRATOS RGB 750W Bronze

KRATOS M1-750B

• Meets 80 PLUS Bronze Efficiency
• Supports Motherboard Sync Functionality
• Neon-Flex RGB 30 Built-In Lighting Effects
• APFC With PF value of 0.99
• Automatic Fan Speed Optimization
• Silent Mode

SPECIFICATIONS

• Type : ATX12V v2.2
• Efficiency : Meet 80 PLUS Bronze efficiency
• Power Factor Correction : APFC with PF value of 0.99
• Support MB Sync : 5V 3-pin Addressable (Digital) RGB Header Only
• Dimension (L x W x H) : 140 x 150 x 86 mm
• Support C6/C7 power state : No
• AC Input : 100-240V / 6-12A / 47-63Hz
• DC Output : +3.3V / +5V / +12V / -12V / +5Vsb
• Max. Output Current : 20A / 20A / 60A / 0.3A / 2.5A
• Max. Output Power : 130W / 720W / 3.6W / 12.5W
• Total Power : 750W
• Protection : OVP / UVP / OPP / SCP / SP
• Main Power : 1 (20+4 Pin)
• CPU : 2 (4+4 Pin)
• PCI-E : 4 (6+2 Pin)
• SATA : 5 (5 Pin)
• Molex : 2 (4 Pin)
• Floppy : 1 (4 Pin)
• Modular : Non Modular
• Flat Cable : Yes
• Lighting Effect : 30 Neon-Flex RGB
• Silent Mode : Yes
• DC to DC : No
