MikroTik netFiber 9 Outdoor Switch | 5x SFP | 4x SFP+ 10G | 1x Gigabit Ethernet | PoE-in | Rugged Case | RouterOS L5

netFiber 9

A remarkable outdoor switch for setting up an optical network that can even perform some light routing. The spiritual successor to the beloved FiberBox.

Multiple Powering Options | Different Mounting Options | Sturdy Outdoor Case

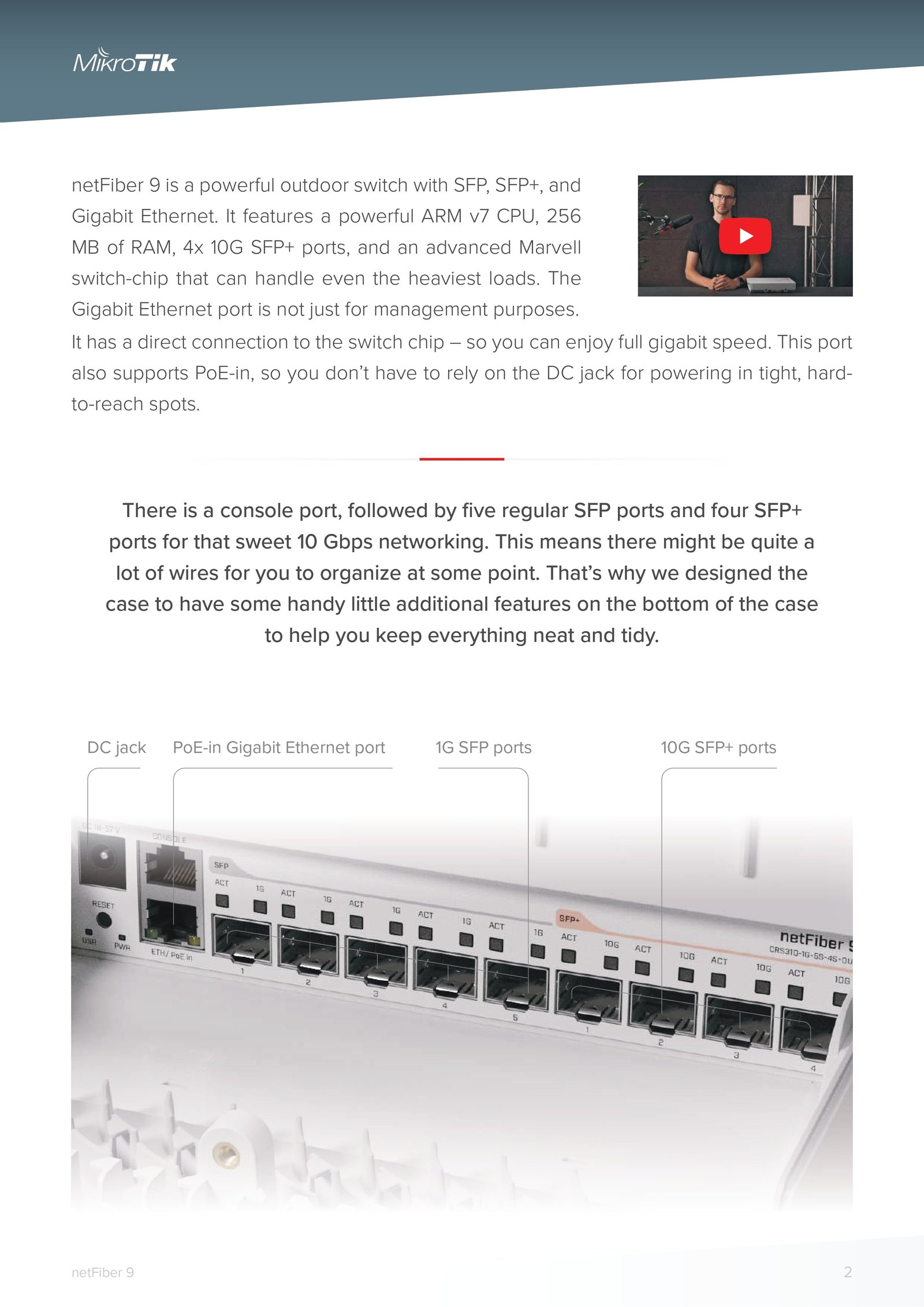

netFiber 9 is a powerful outdoor switch with SFP, SFP+, and Gigabit Ethernet. It features a powerful ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports, and an advanced Marvell switch-chip that can handle even the heaviest loads.

The Gigabit Ethernet port is not just for management purposes. It has a direct connection to the switch chip – so you can enjoy full gigabit speed. This port also supports PoE-in, allowing for convenient powering in tight or hard-to-reach areas without relying on the DC jack.

There is also a console port, followed by five regular SFP ports and four high-speed SFP+ ports, giving you plenty of flexibility in setting up a robust 10 Gbps network. To help you stay organized, the case features clever cable management enhancements at the bottom for a cleaner install.

Built for Harsh Environments

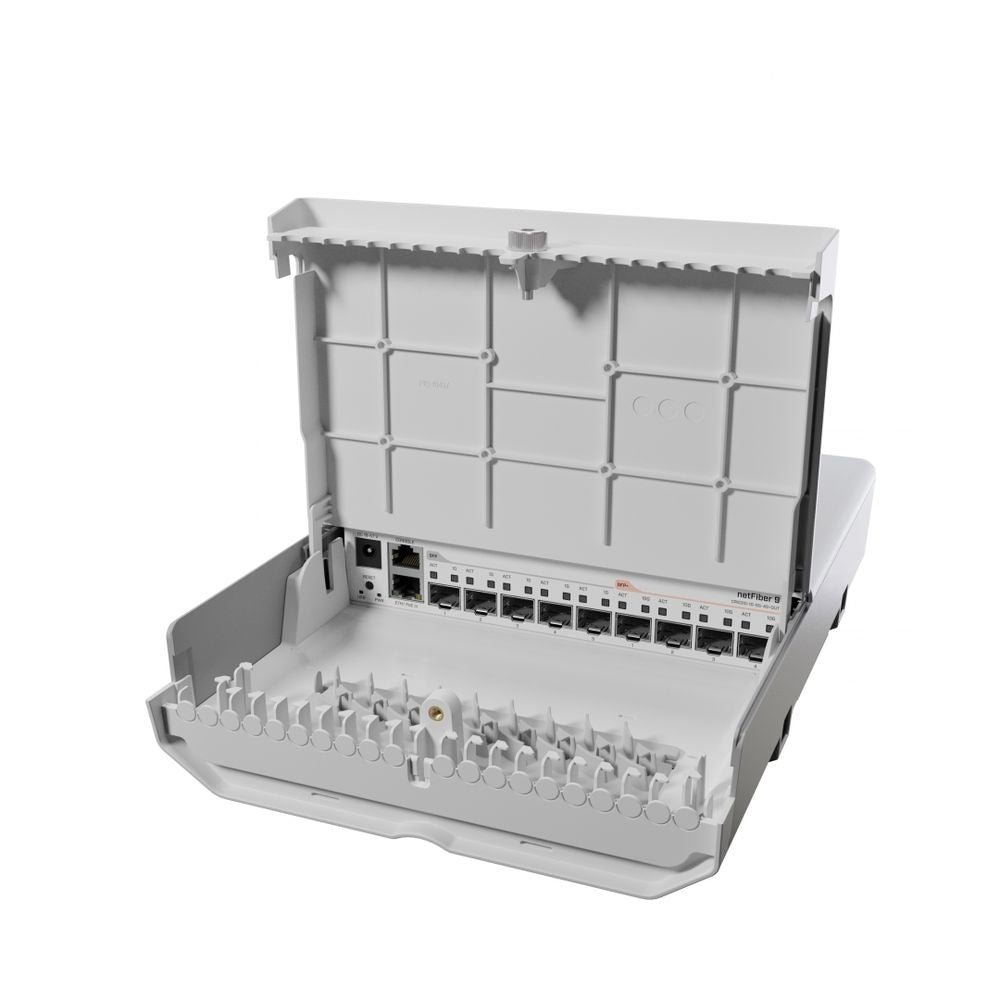

The rugged enclosure offers reliable protection in dusty outdoor environments with light exposure to water—ideal for mounting under eaves, in covered outdoor cabinets, or similar locations.

A massive heatsink on the back ensures excellent heat dissipation while shifting the center of mass toward the mounting side, offering added stability and support. The package includes metal hose clamps and screws, so you can securely install it on poles, walls, or masts out of the box.

netFiber 9 is an ideal solution for long-distance connections over 100 meters where maintaining low ping and minimizing data loss is critical. Fiber optics offer better resistance to electromagnetic interference, tampering, or eavesdropping compared to copper. With 10 ports, a capable CPU, and a rugged design, netFiber 9 is a smart and cost-effective choice for demanding networks.

Powering

• PoE-in: 802.3af/at supported
• Number of DC inputs: 2
• Supported input voltage: 18–57 V (PoE-in and DC jack)
• Power adapter nominal voltage: 48 V
• Power adapter nominal current: 0.95 A

Specifications

• Product code: CRS310-1G-5S-4S+OUT
• CPU: 98DX226S @ 800 MHz (1 core)
• RAM: 256 MB DDR3
• Ethernet ports: 1 x Gigabit Ethernet
• SFP ports: 5 x 1G SFP
• SFP+ ports: 4 x 10G SFP+
• Operating system: RouterOS with License Level 5
• Switch chip: Marvell 98DX226S
• Dimensions: 304 x 212 x 71 mm
• Operating temperature: -40°C to +70°C tested

Included Parts

• Gigabit PoE injector
• 48 V 0.95 A power adapter
• Fastening set
• Metal hose clamp
