NetAlly LinkRunner AT 2000 Ethernet & Fiber Network Tester – PoE, AutoTest, Cable & Port ID, Windows 8.1/10 Support

Product Description

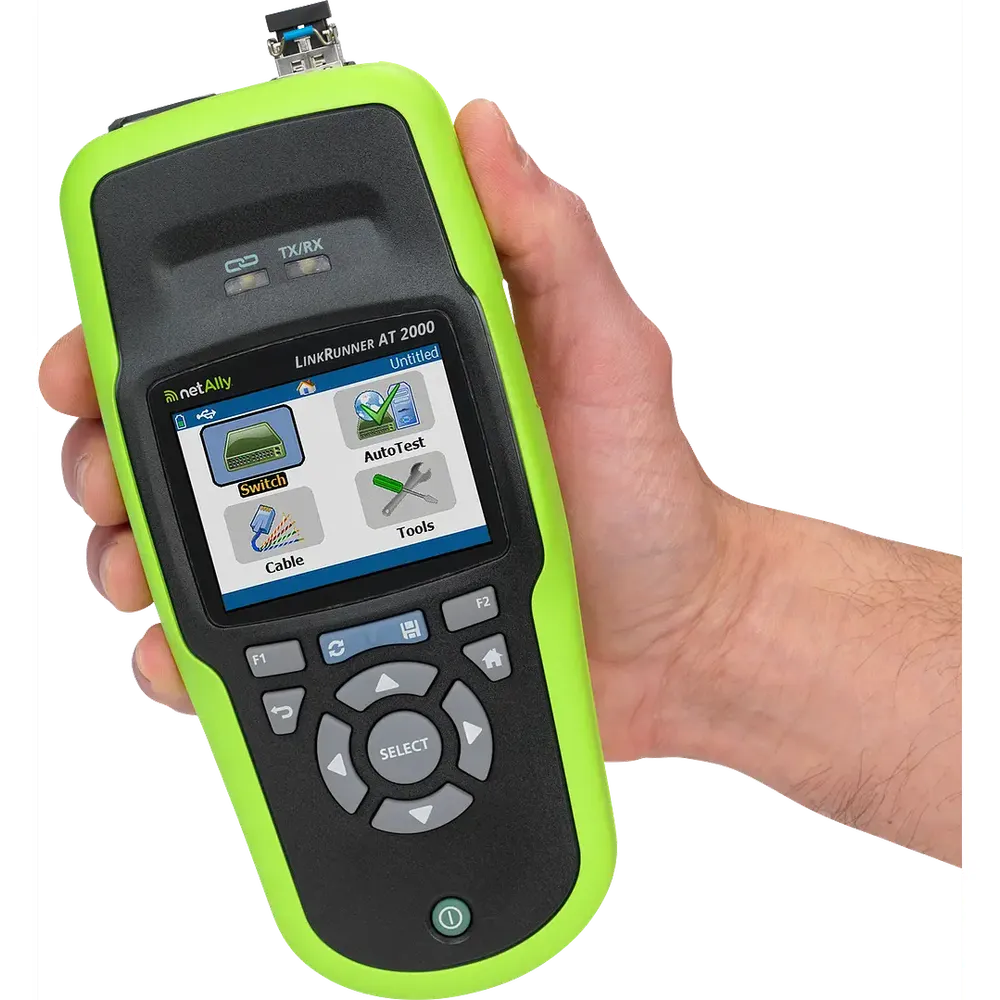

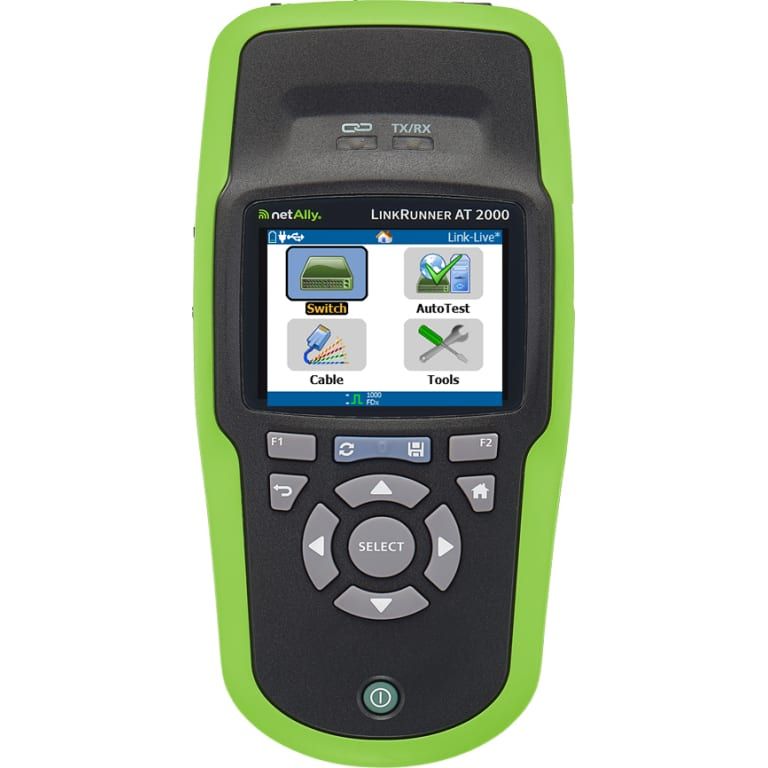

The NetAlly LinkRunner AT 2000 is a copper and fiber Ethernet network AutoTester designed to streamline and speed up network troubleshooting and validation. With a one-button Auto Test, it delivers rapid results in under 10 seconds, allowing users to verify key network services, switch port information, PoE, and cable integrity instantly.

This handheld tester supports both copper (10/100/1000BASE-T) and fiber (100BASE-FX and 1000BASE-LX/SX) Ethernet links, offering unmatched flexibility for both enterprise and field technicians. It includes a rechargeable Li-ION battery, TruePower™ PoE load testing up to 30W, and up to 50 test result storage slots for efficient job tracking.

Key Features:

• Tests 10/100/1000 Mbps copper and 100/1000 Mbps fiber Ethernet links
• One-button AutoTest completes diagnostics in under 10 seconds
• TruePower™ PoE load testing up to 30W with voltage, power, and class readouts
• Packet Reflector mode for end-to-end throughput testing up to 1 Gbps
• LLDP, CDP, and EDP discovery for nearest switch, port, and VLAN details

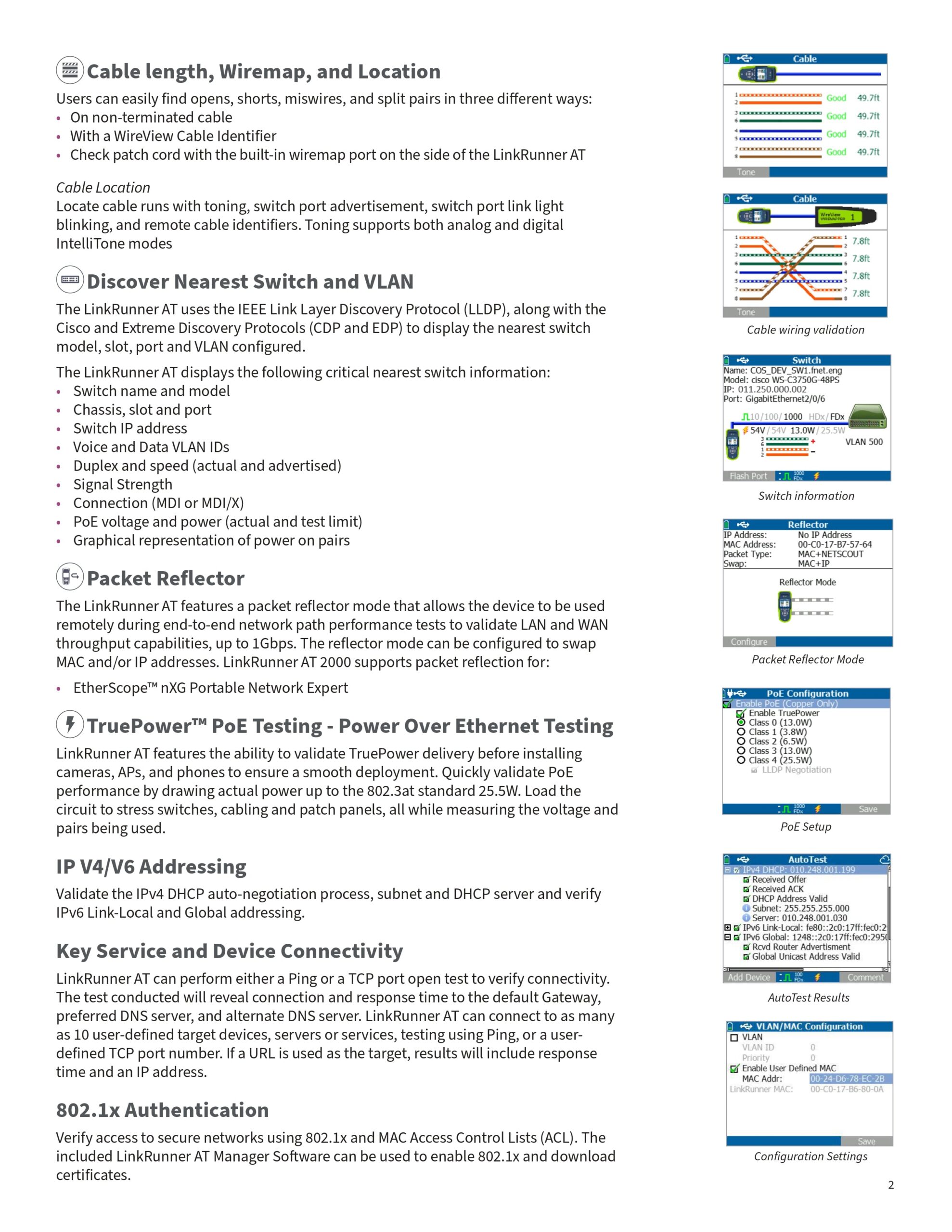

• Performs cable tests: opens, shorts, miswires, splits, length, and location
• WireView cable ID support and IntelliTone™ analog/digital toning
• Tests DHCP, DNS, and Gateway connectivity with IP v4/v6 support
• 802.1x authentication support including certificate download via software
• Up to 50 result storage slots with upload capability to Link-Live Cloud Service

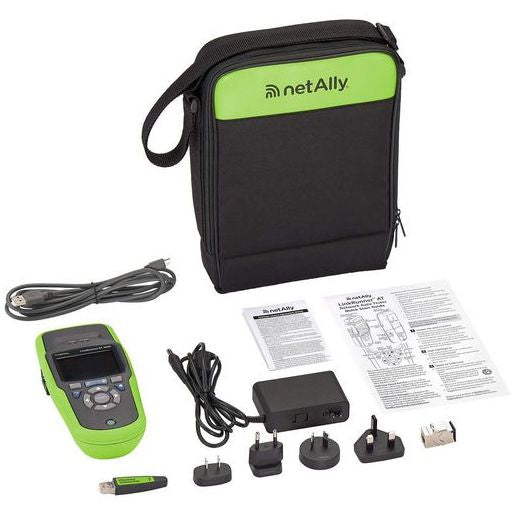

Included in the Box:

• LinkRunner AT 2000 Tester with rechargeable Li-ION battery
• Power supply with regional plugs
• WireView Cable ID #1
• RJ-45 coupler
• USB cable
• Quick Start Guide
• Soft carrying case

Additional Highlights:

• Automated test result uploads and reporting with Link-Live Cloud
• Compact and rugged design for field and bench use
• Supports 802.3af and 802.3at PoE standards
• Works with optional SFP modules for fiber connectivity

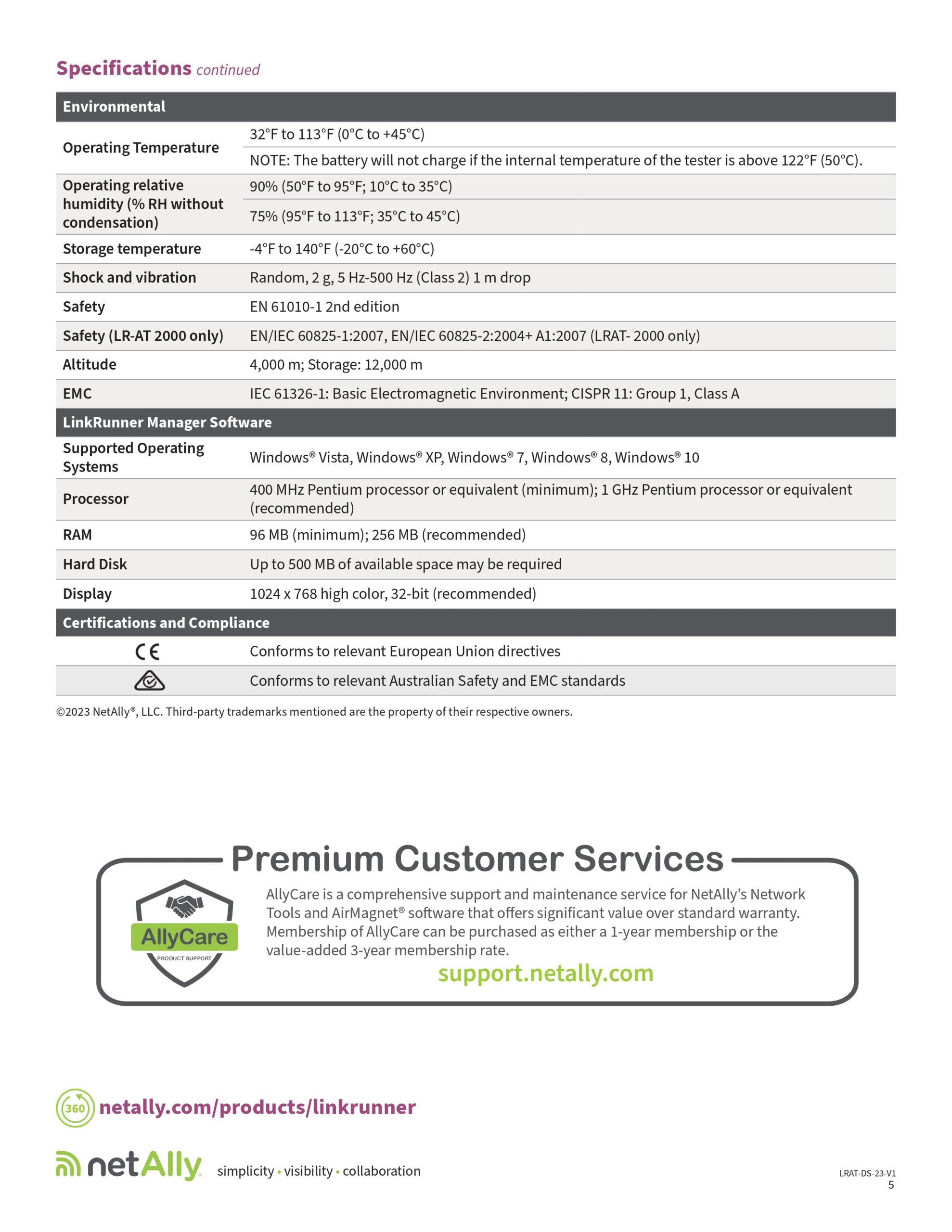

• Windows 8.1 and 10 supported (via LinkRunner Manager software)
