NetAlly LinkRunner G2 Smart Network Tester with PoE Load, AutoTest, Android App Support, Cable & VLAN Detection, Link-Live Enabled

Link-Live™

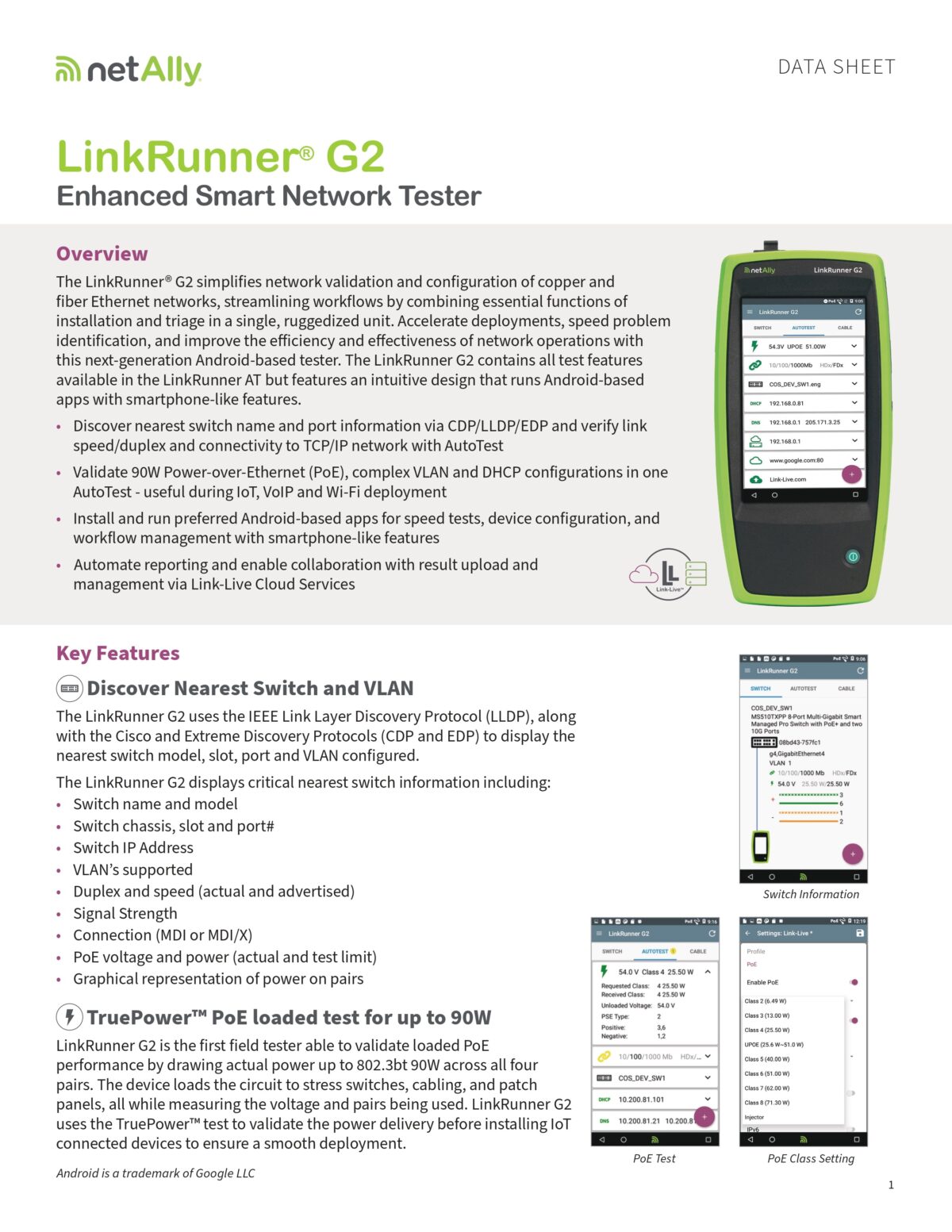

Overview

The LinkRunner® G2 simplifies Ethernet network validation and configuration, combining copper and fiber testing, PoE validation, and Android app support in one ruggedized device. Ideal for accelerating deployments, troubleshooting, and improving operational efficiency.

• Discover nearest switch name/port info via CDP/LLDP/EDP
• Validate 90W PoE, VLAN, and DHCP configurations in a single AutoTest
• Run Android-based apps for configuration and speed tests
• Automatically upload results to Link-Live™ Cloud for collaboration and reporting

Key Features

• PoE Load Testing up to 802.3bt 90W with TruePower™
• Switch details: name, model, slot/port, VLANs, IP, PoE voltage, and more
• Packet Reflector Mode for 1Gbps throughput tests with compatible tools
• Programmable AutoTest Profiles for deployment workflows
• Built-in camera, barcode scanner, and Android OS for productivity
• 802.1x Authentication and MAC ACL support

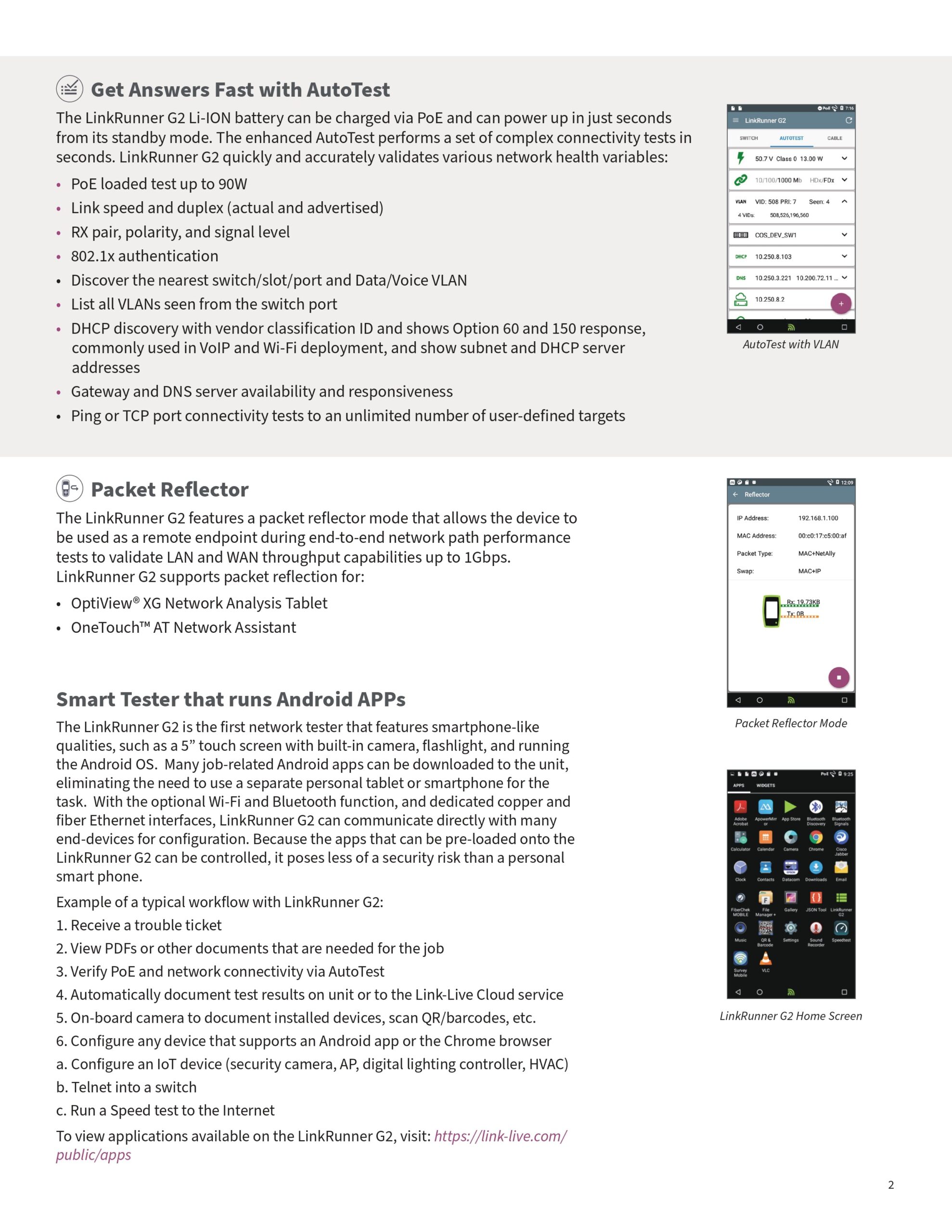

• AutoTest for link speed, VLANs, DHCP, DNS, Gateway, ping, and TCP targets
• Advanced troubleshooting: cable faults, VLAN monitor, protocol capture

Connectivity Tests

• Link speed/duplex detection (actual and advertised)
• PoE voltage, power, and pair usage

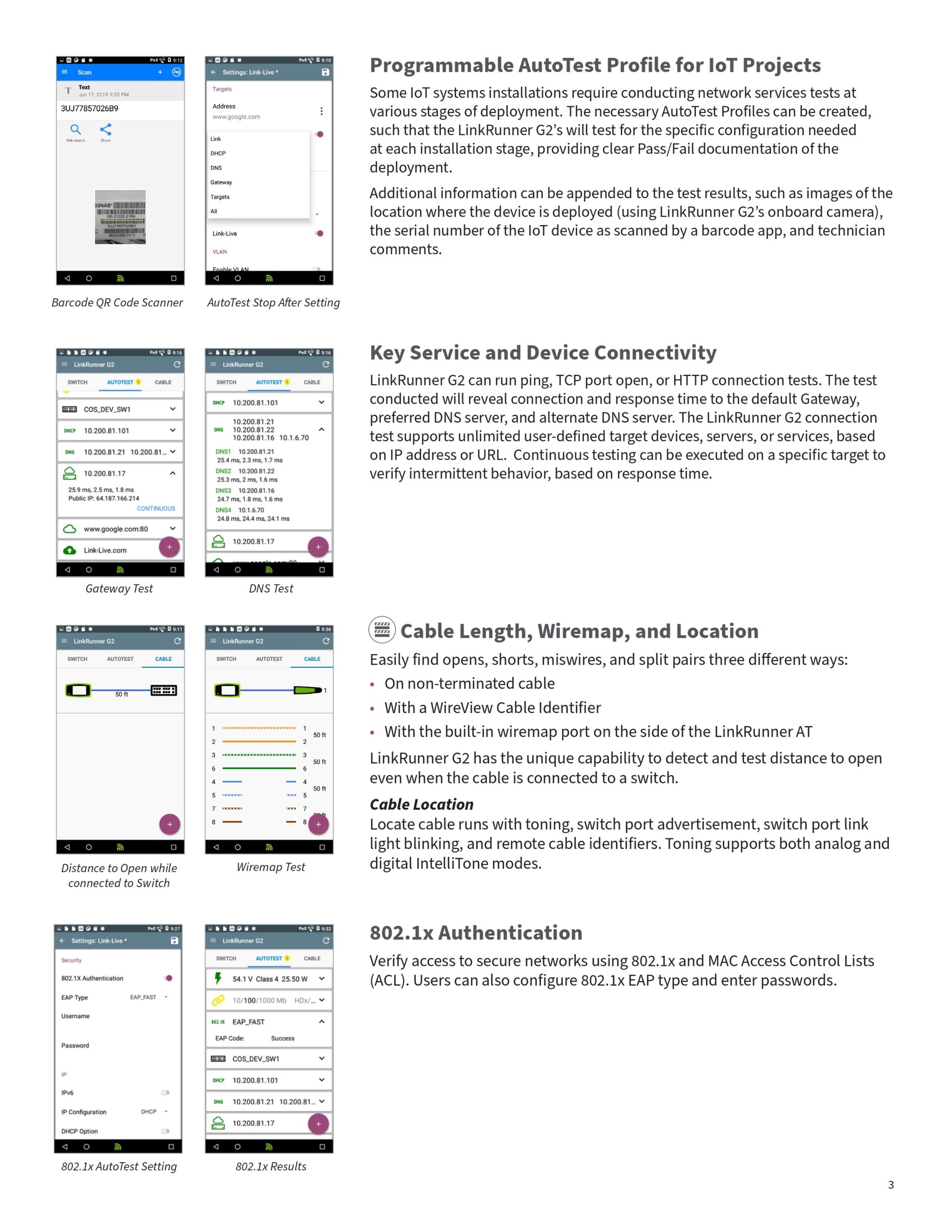

• Signal level, pair polarity, cable length, wiremap, distance to fault
• DHCP Option 60 & 150 support for VoIP & Wi-Fi deployments
• Ping/TCP/HTTP tests to unlimited IP or URL targets

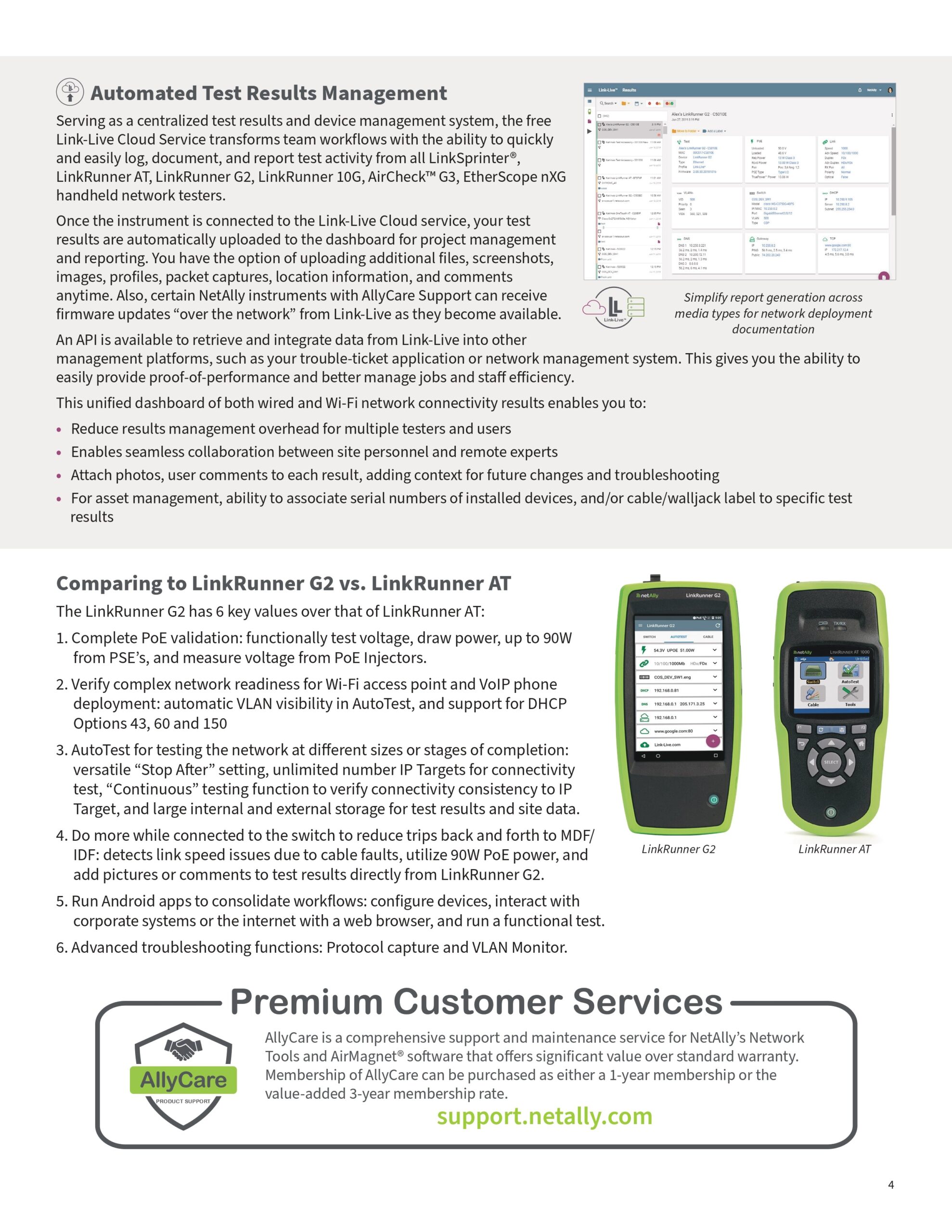

Results & Reporting

• Test results auto-uploaded to Link-Live Cloud Service
• Attach photos, comments, QR/barcode scans to results
• Centralized dashboard for job tracking, asset management, and proof-of-performance
• API available for integration with ticketing and network management systems

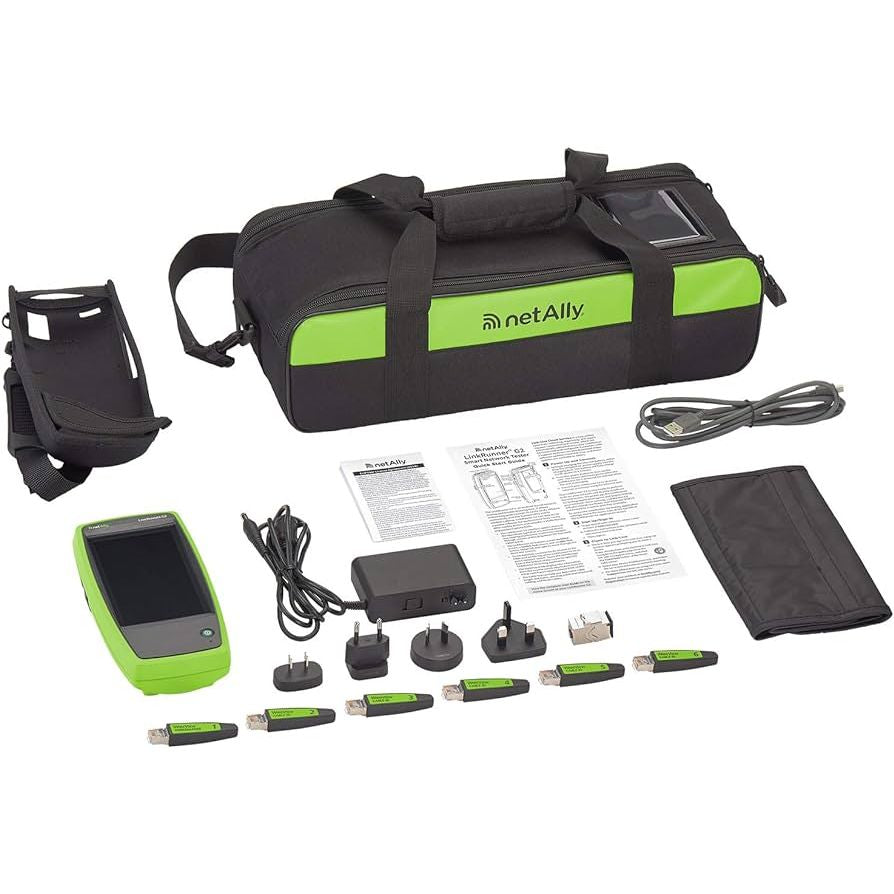

Included in Box (Model: LR-G2)

• LinkRunner G2 unit with Li-ION battery
• Power supply with regional plugs
• WireView #1 mapper, inline RJ-45 coupler
• USB cable, 8GB Micro SD card, soft case
• Quick Start Guide

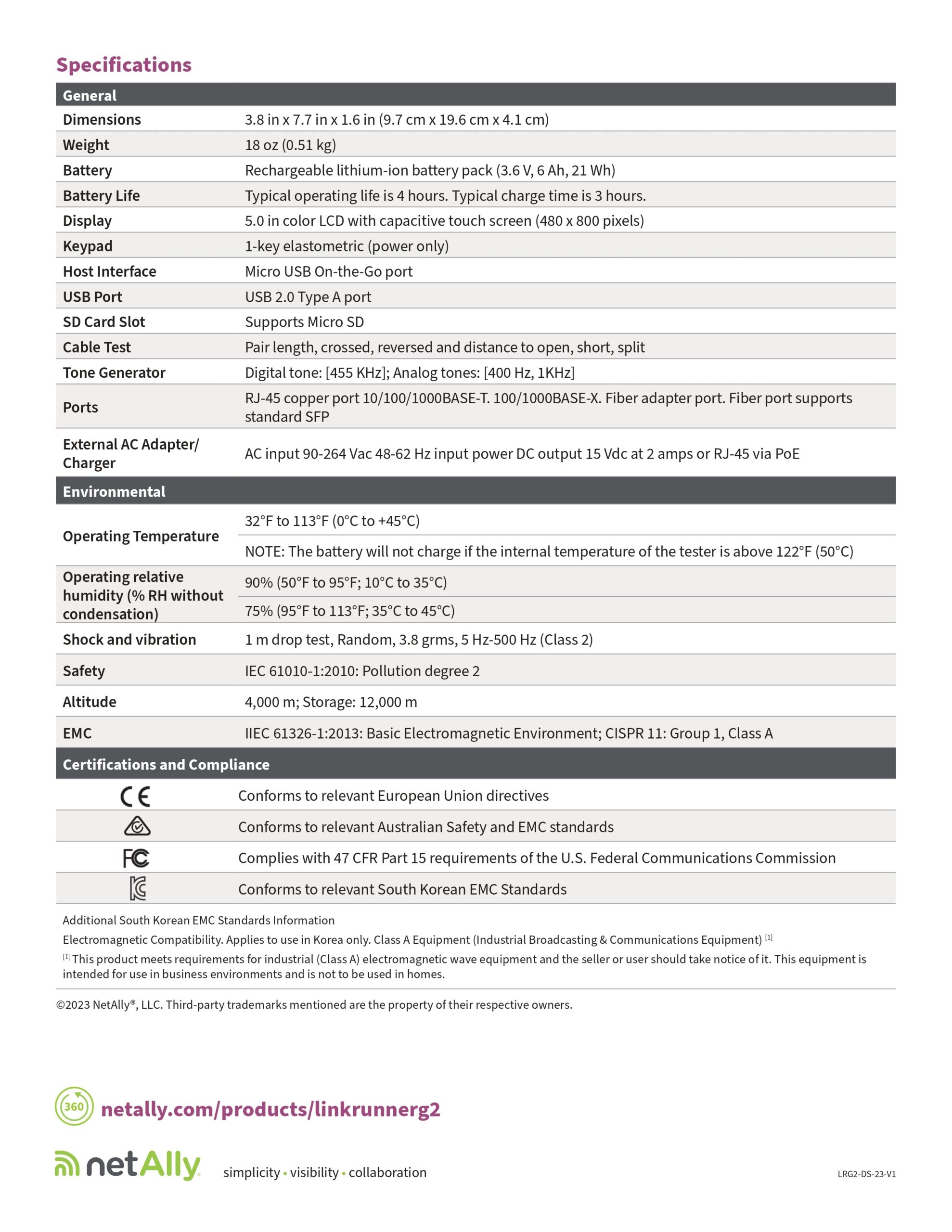

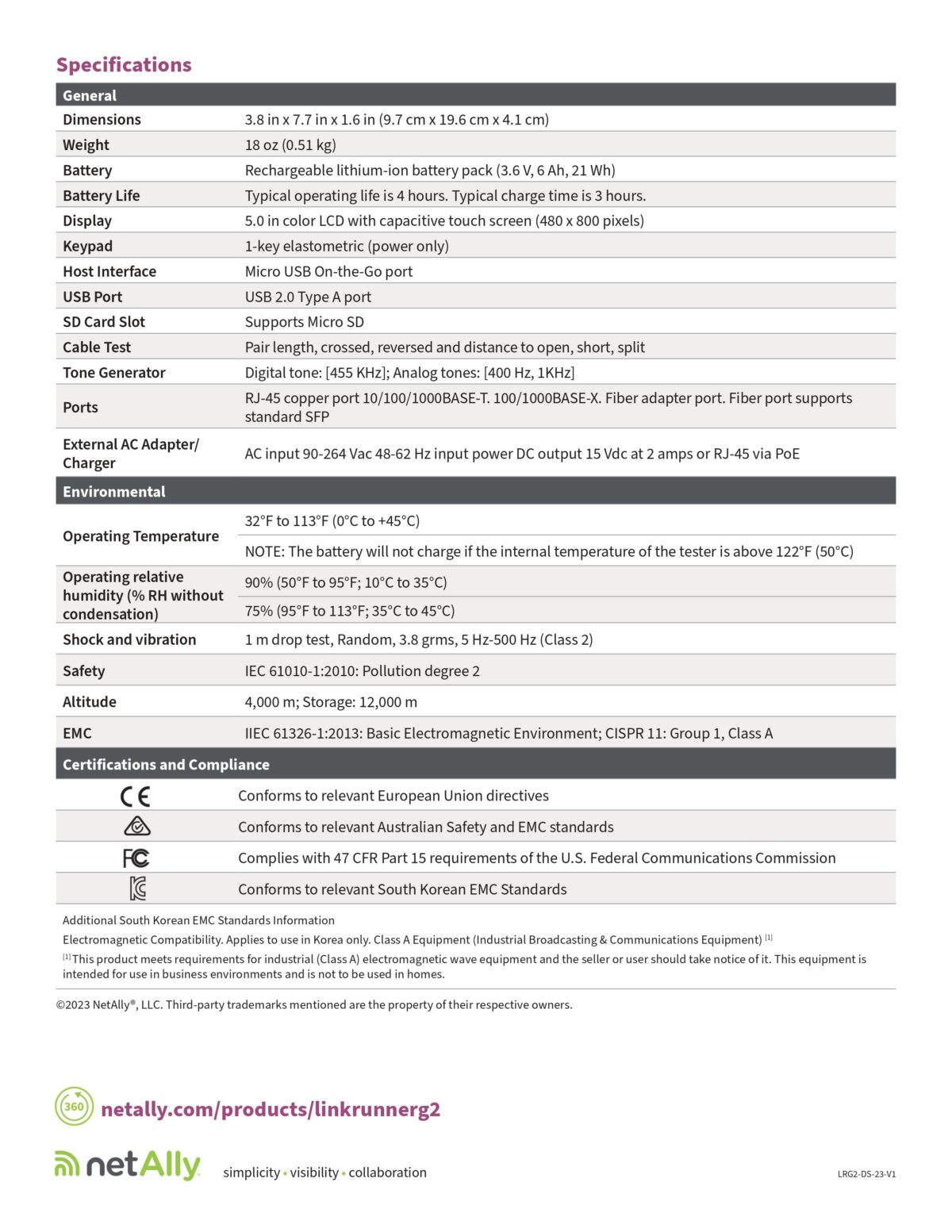

Specifications

• Display: 5.0” color LCD touchscreen (480×800)
• Battery: 3.6V, 6Ah Li-ION (4hr typical life)

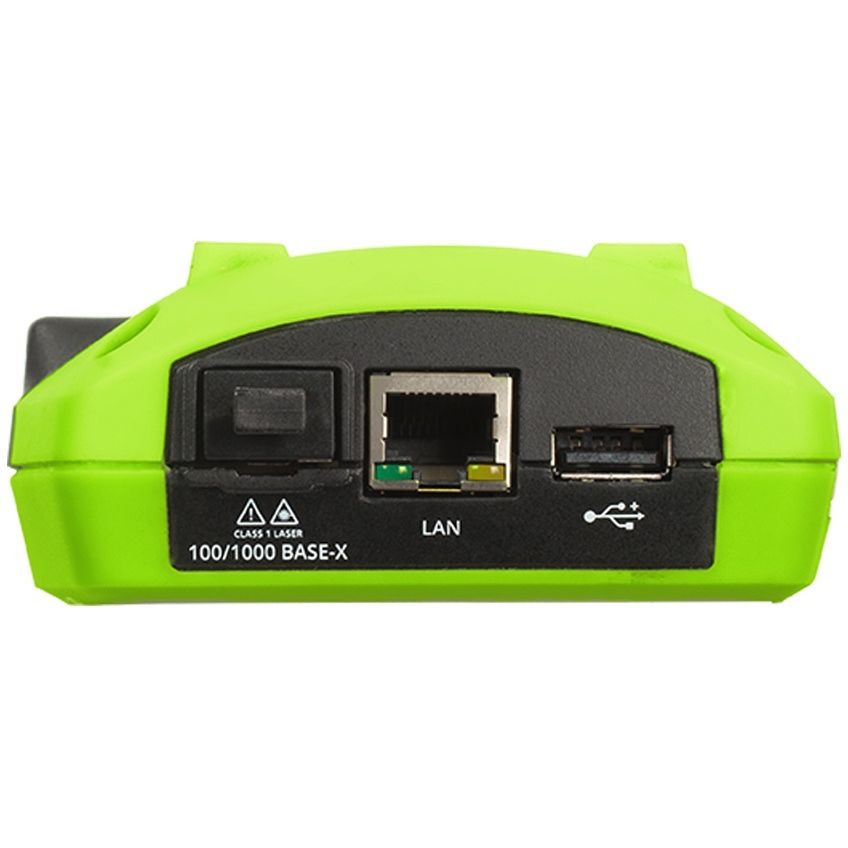

• Interfaces: RJ-45 (10/100/1000BASE-T), SFP Fiber port, USB, Micro USB OTG
• Environmental: 0°C–45°C operating temp, 1m drop tested
• Compliance: FCC Part 15, EU Directives, IEC 61010-1
