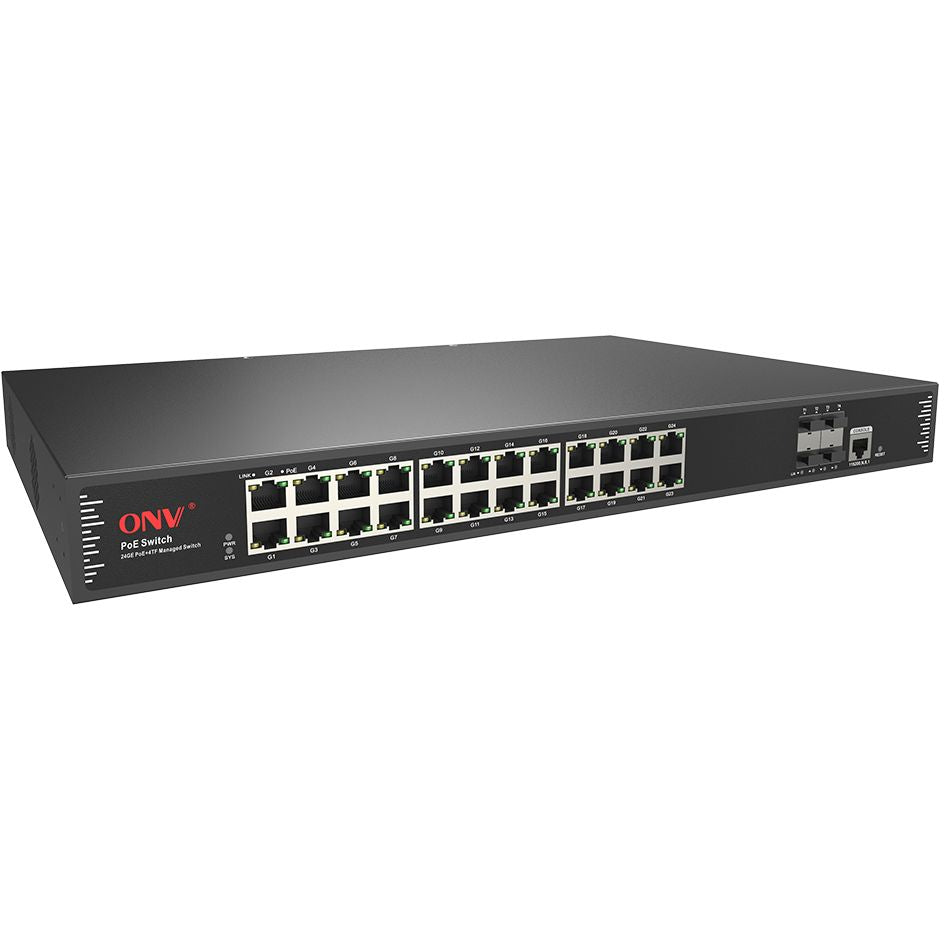

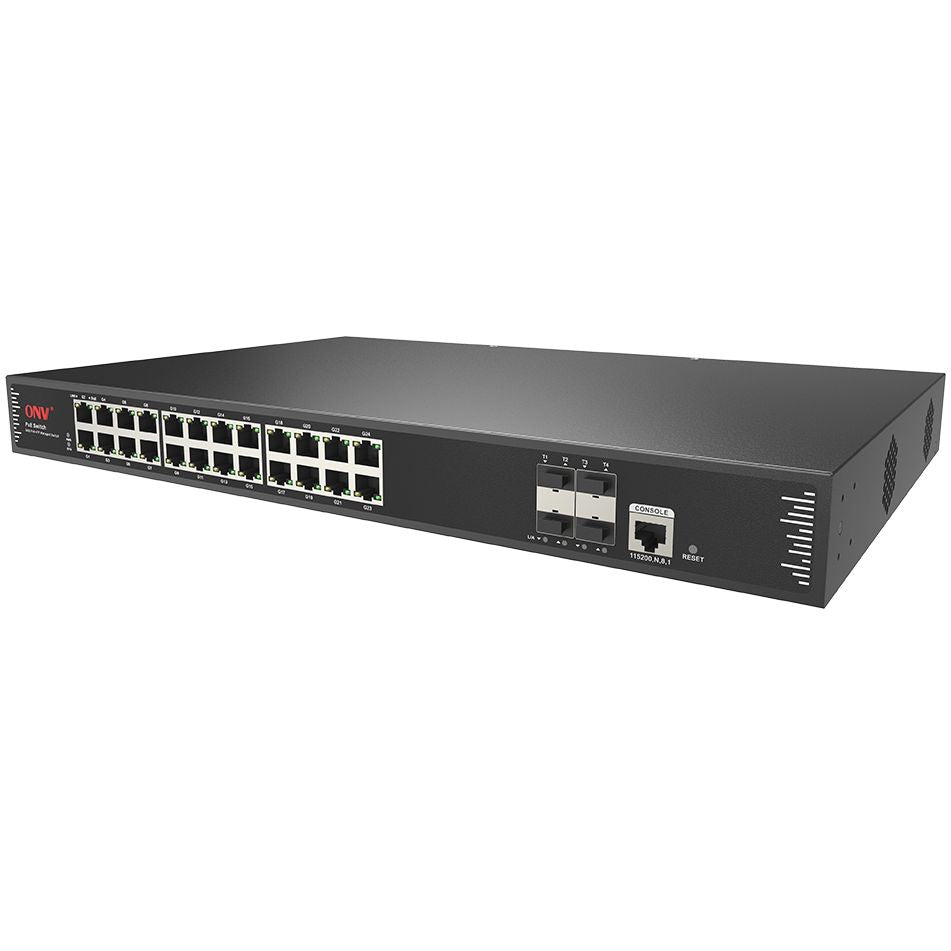

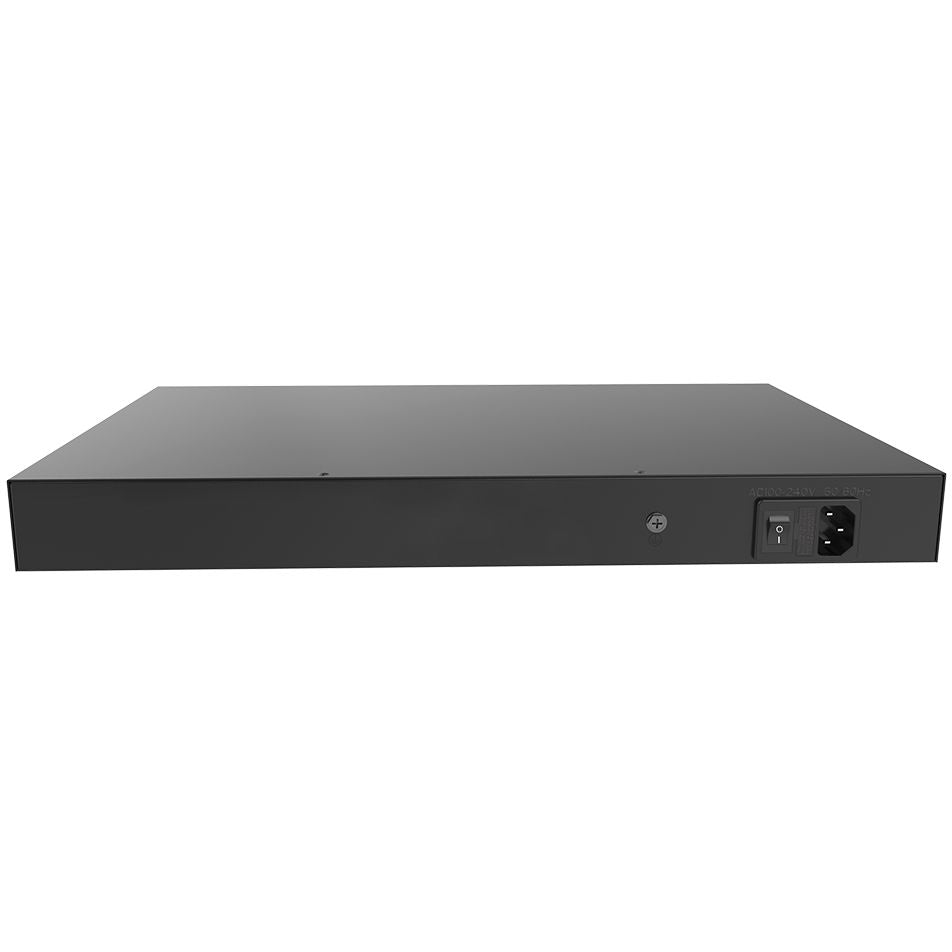

ONV 10G uplink 28-port L2+ managed PoE switch

FEATURE:

Gigabit access, 10G uplink

• Supports Gigabit Ethernet port and 10G SFP+ uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
• Support non-blocking wire-speed forwarding.
• Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

Intelligent PoE power supply

• 24*10/100/1000Base-T RJ45 ports can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
• PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

Security

• 802.1X authentication.
• Port isolation, Storm control.
• IP-MAC-VLAN-Port binding.

Strong business processing capability

• IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
• IGMP V1/V2 and IGMP Snooping.
• ERPS/STP/RSTP/MSTP.
• Static and dynamic aggregation.

Stable and reliable

• Low power consumption, No fan , galvanized steel casing.
• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
• CCC,CE, FCC, RoHS.
• The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, PoE.

Easy operation and maintenance management

• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
• HTTPS, SSLV3, and SSHV1/V2.
• RMON, system log, LLDP, and port traffic statistics.
• CPU monitoring, memory monitoring, Ping test, and cable diagnose.
