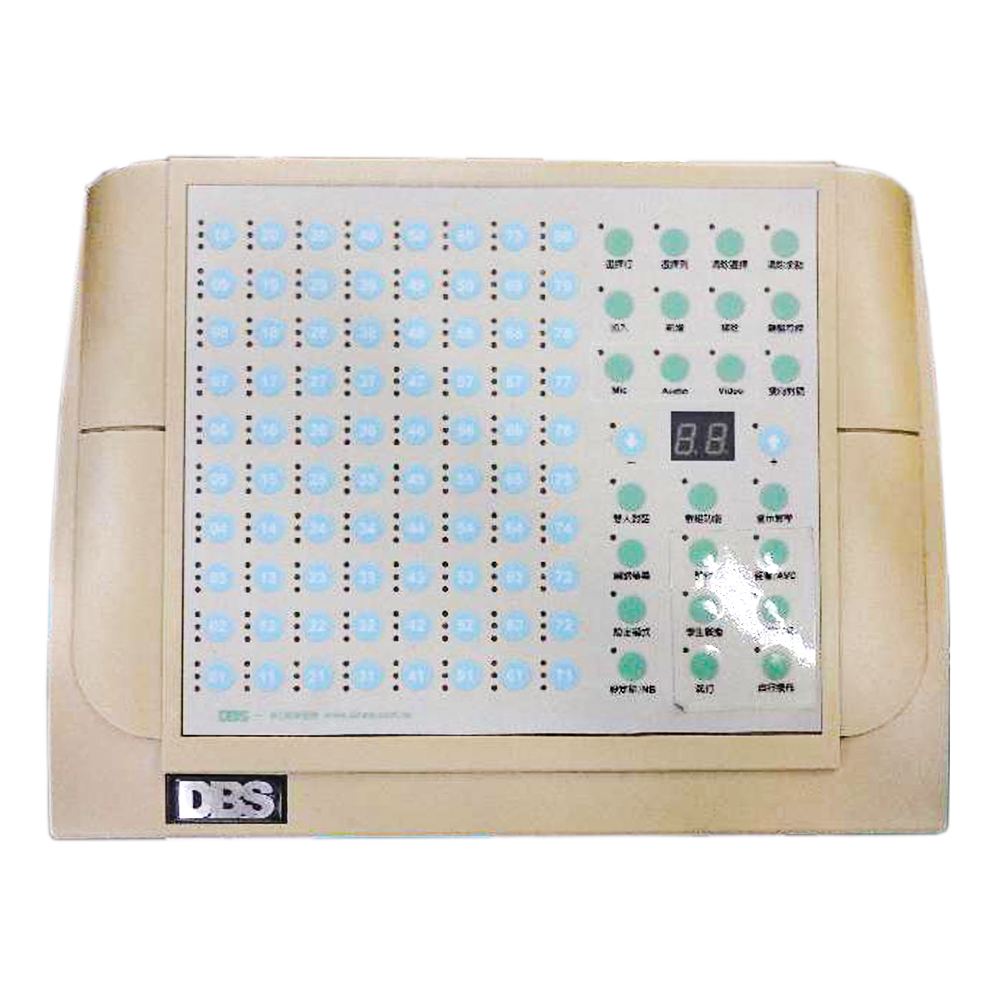

SINEW Teacher Panel (DM-400D)

Support 80 students in matrix. Full functions: teacher broadcast student broadcast, auto observe, area observe, darken, dialog, Talk and group functions.

Back Plate:

1. POWER: 110/ 220V power socket
2. UTP BUS：One connects to BSNT with one orange STP cable and inserts the blue terminator into the other unused port.

BSNT:

1. BUS IN/OUT PORT: One connects to BUS OUT B port of DM-3162DA-A5S.
2. BSNT connection structure is in appendix 5.
3. Please see the BSNT installation guide for more details.
