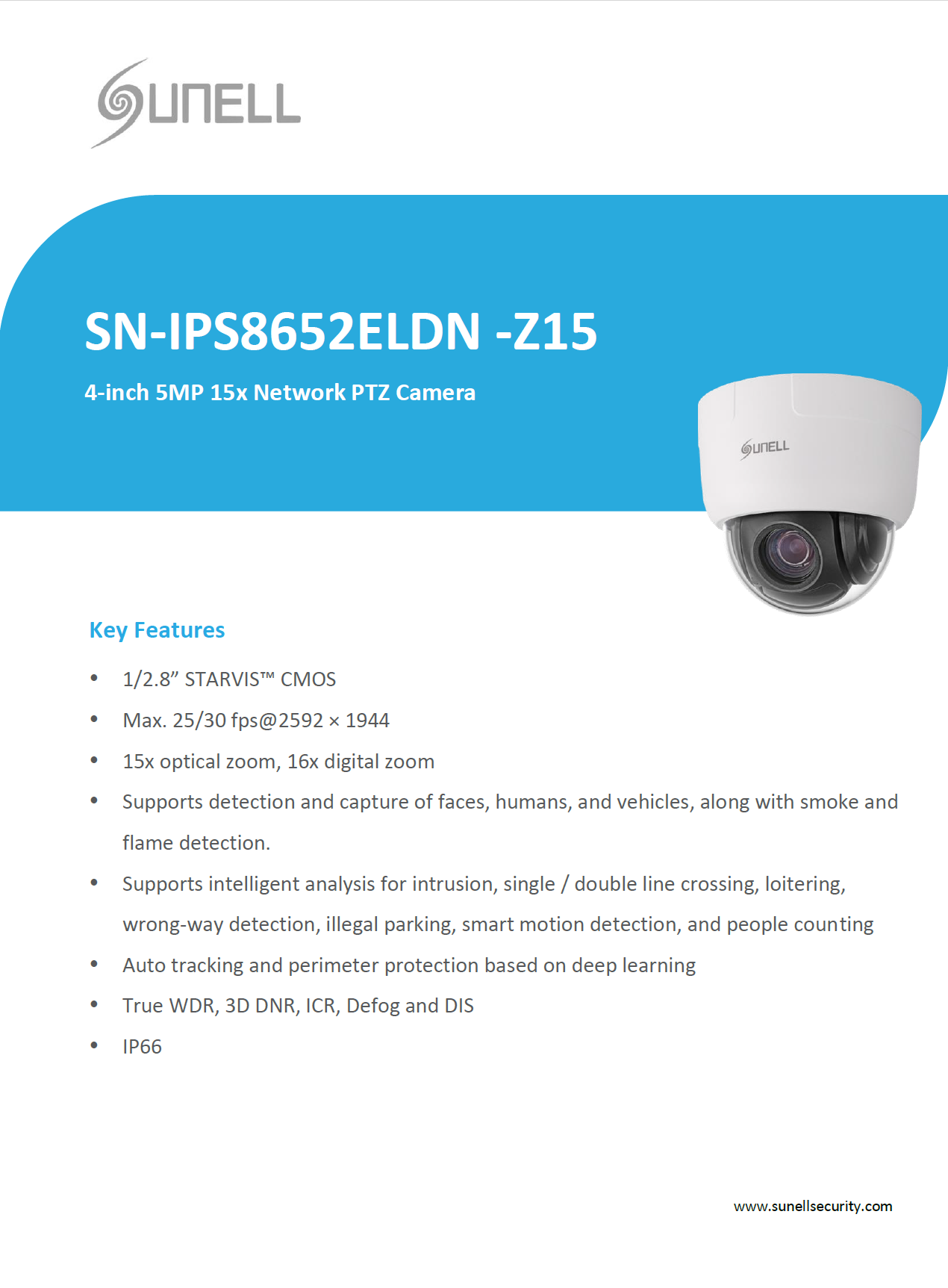

Sunell 5MP 15x Starlight IR PTZ Camera with AI Detection & 200m IR Range

5MP 15x Starlight IR Network PTZ Camera with AI Detection & 200m IR Range

The SN-IPS8652ELDN-Z15 is a high-performance 5MP PTZ camera featuring a 15x optical zoom lens and advanced AI analytics. Designed for expansive surveillance needs, it offers exceptional low-light performance, intelligent tracking, and robust weatherproofing, making it ideal for both urban and industrial security applications.

• Resolution: 5MP (2592 × 1944) @25/30fps using a 1/2.8″ STARVIS™ CMOS sensor.
• Optical Zoom: 15x (5.3–79.5 mm) with 16x digital zoom for detailed long-range monitoring.
• Illumination: Smart IR with a range up to 200 meters for clear night vision.
• AI Detection: Supports face, human, vehicle, smoke, and flame detection.
• Intelligent Analytics: Intrusion, line crossing, loitering, wrong-way, illegal parking, smart motion detection, and people counting.
• Auto Tracking: Deep learning-based tracking and perimeter protection.
• Image Enhancements: True WDR, 3D DNR, ICR, Defog, and DIS for optimal image clarity.
• Weatherproofing: IP66-rated housing ensures durability in various environments.

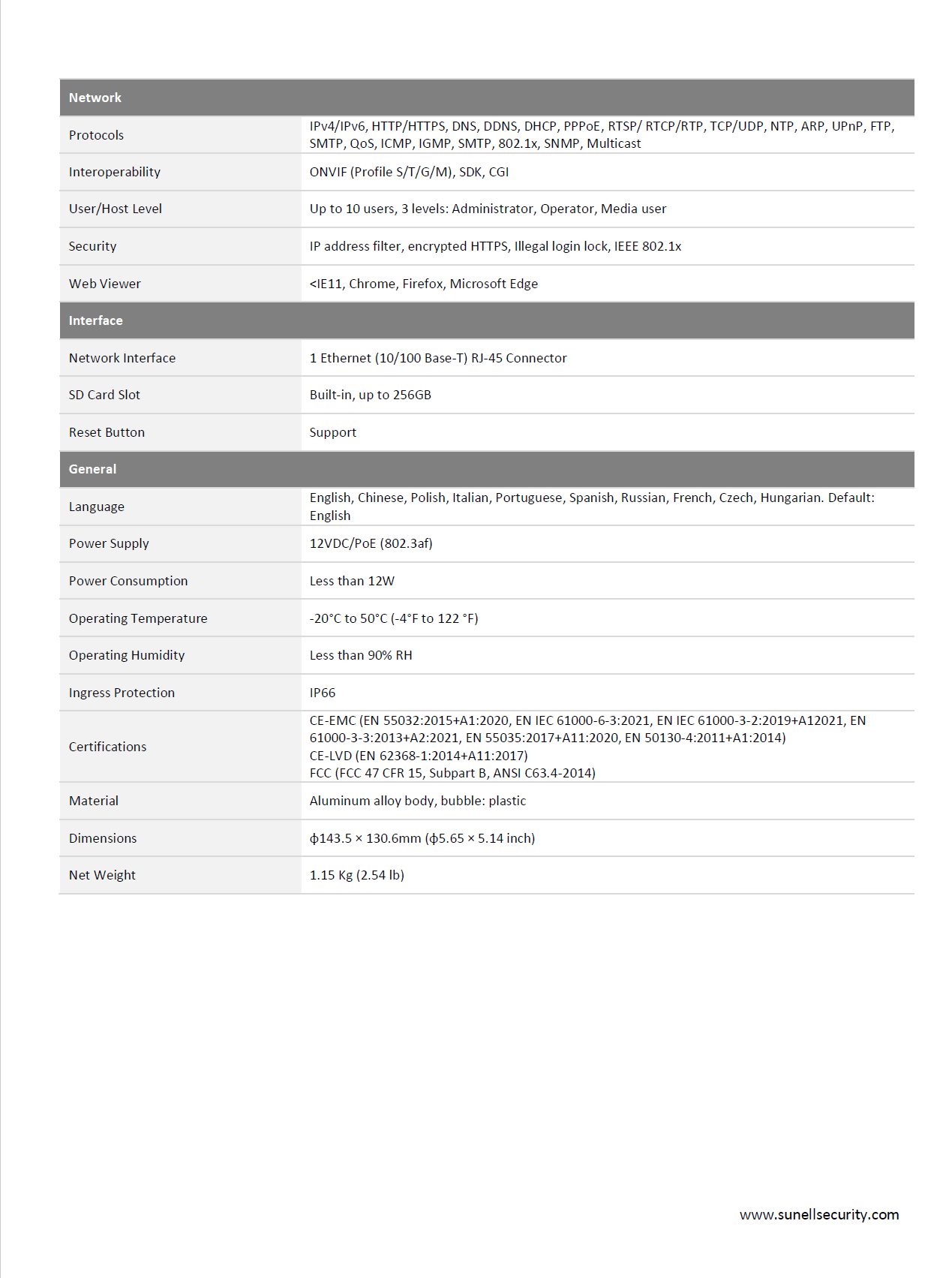

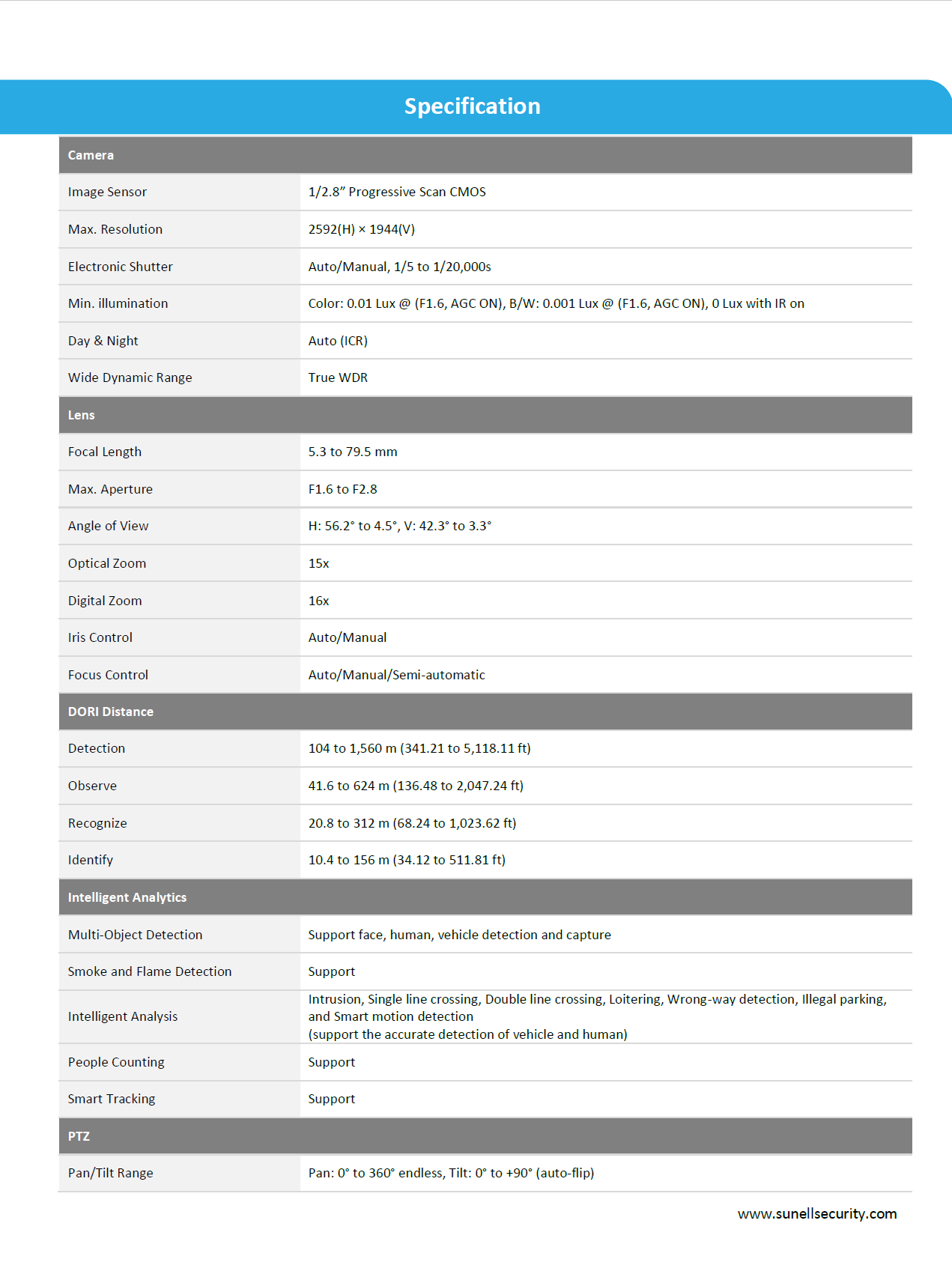

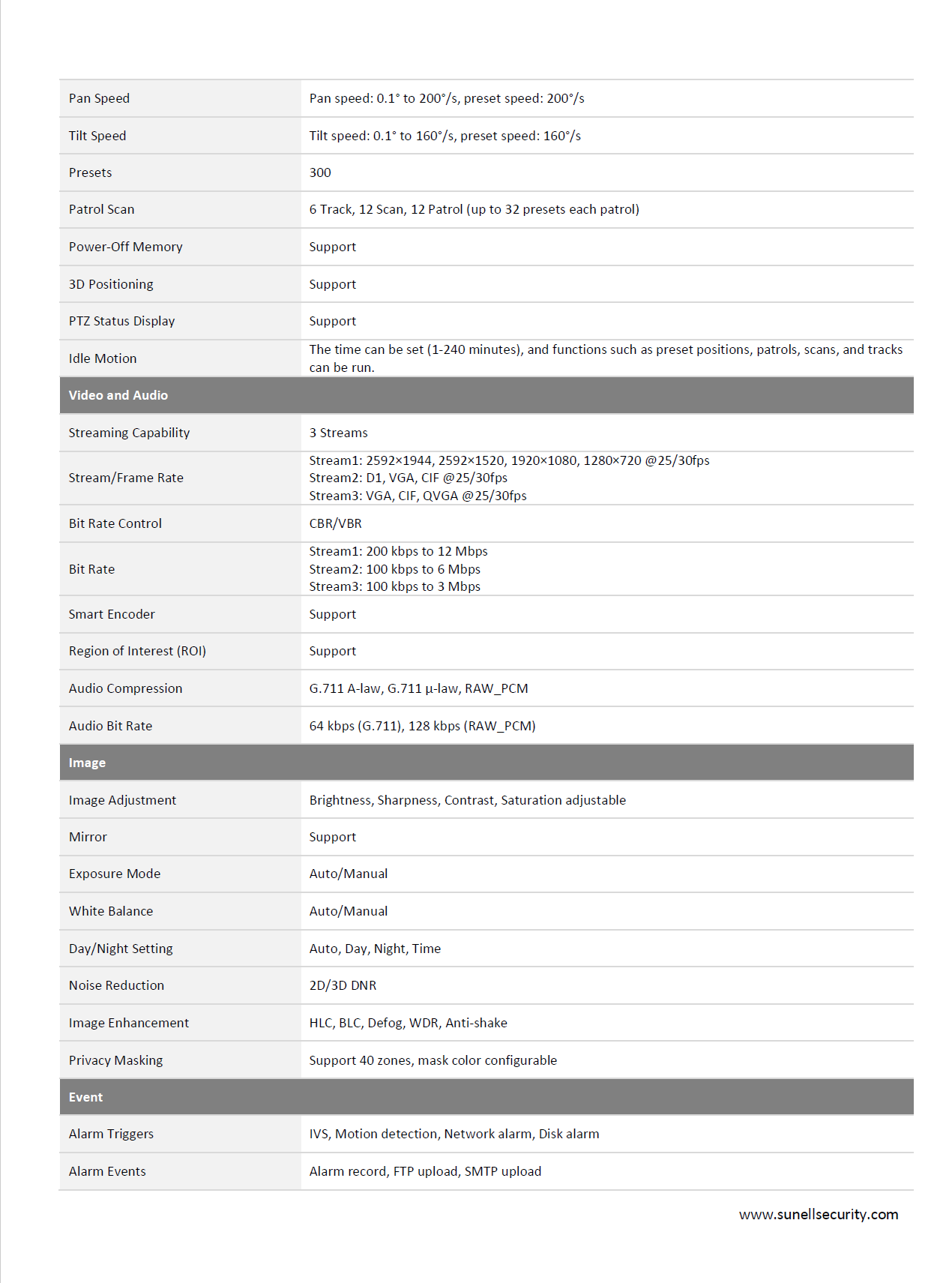

Technical Specifications:

• Sensor: 1/2.8″ STARVIS™ CMOS
• Lens: 5.3–79.5 mm (15x optical zoom), F1.6–F2.8
• Field of View: Horizontal: 58.2°–4.83°, Vertical: 34°–2.8°
• Minimum Illumination: Color: 0.01 Lux @F1.6, B/W: 0.001 Lux @F1.6, 0 Lux with IR on
• Pan/Tilt Range: Pan: 0°–360° endless, Tilt: 0°–+90°
• Pan/Tilt Speed: Pan: 0.1°–200°/s, Tilt: 0.1°–160°/s
• Presets: 300; Patrol: 12; Pattern: 6; Track: 6
• Video Compression: H.265, H.264, MJPEG
• Audio Compression: G.711 A-law, G.711 μ-law, RAW_PCM
• Audio Bit Rate: G.711: 64 kbps; RAW_PCM: 128 kbps
• Audio Interface: 1 channel input, 1 channel output
• Alarm Interface: 7 inputs, 2 outputs
• Storage: Built-in microSD card slot supporting up to 256GB
• Network Interface: 1 RJ-45 (10/100 Base-T)
• Protocols: IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, 802.1x, SNMP, Multicast
• Interoperability: ONVIF (Profile S/T/G/M), SDK, CGI
• Power Supply: 12VDC/PoE (IEEE 802.3af)
• Power Consumption: Less than 12 W
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Operating Humidity: Less than 90% RH
• Ingress Protection: IP66

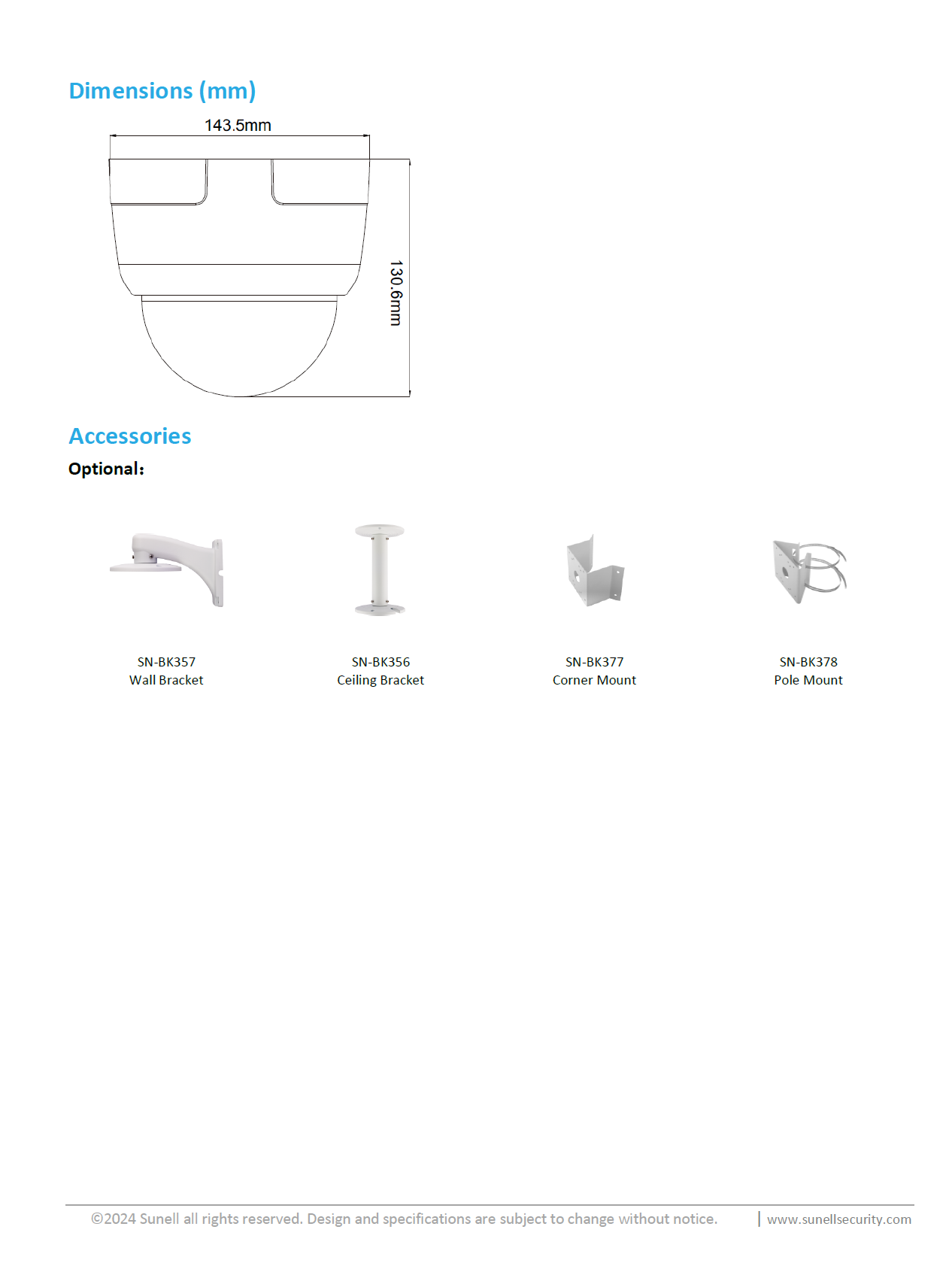

• Dimensions: φ143.5 × 130.6 mm (5.65 × 5.14 inch)
• Weight: 1.15 kg (2.54 lb)

Package Includes: IP Camera, Mounting Kit, User Manual
