Sunell 64-Channel 4K NVR with 400 Mbps Bandwidth, 8 HDD Bays & AI Features

64-Channel 4K Network Video Recorder with 400 Mbps Bandwidth, 8 HDD Bays & AI Features

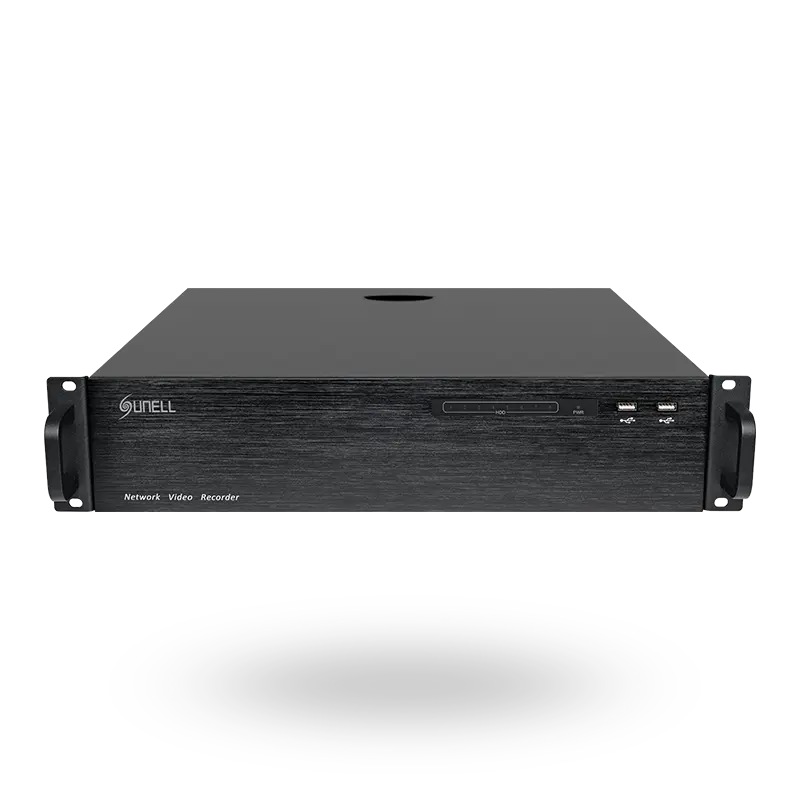

The SN-NVR3964E8-J is a high-performance 64-channel NVR designed for advanced surveillance applications. It supports up to 400 Mbps incoming and outgoing bandwidth, ensuring smooth video recording and playback. With dual HDMI outputs supporting up to 4K resolution, it provides clear and detailed video display. The NVR supports up to 8 SATA hard drives, each up to 12TB, offering ample storage capacity for extended recording periods. RAID configurations (0/1/5/6/10) and N+1 hot spare are supported for data redundancy and reliability. Advanced AI features include face recognition, multi-objective recognition, and perimeter protection.

• Camera Support: Up to 64 IP channels with ONVIF compatibility.
• Incoming Bandwidth: 400 Mbps
• Outgoing Bandwidth: 400 Mbps
• Decoding Capacity: 1 channel @ 12MP, 4 channels @ 8MP, 8 channels @ 4MP, 16 channels @ 1080P, 32 channels @ D1, 64 channels @ D1
• Video Output: 2 HDMI outputs supporting 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 resolutions; 1 VGA output supporting 1920 × 1080, 1280 × 1024, 1024 × 768 resolutions
• Compression: H.265+, H.265, H.264+, H.264 for efficient storage utilization
• Storage: Supports up to 8 SATA hard drives, each up to 12TB
• RAID Support: RAID 0/1/5/6/10 and N+1 hot spare
• Network Interface: 2 x RJ-45 Ethernet ports (10/100/1000 Mbps)
• Remote Access: Supports remote viewing via Web Browser, SunView App, and SunView PC Software
• Audio: 1 RCA input / 1 RCA output for bidirectional audio
• Alarm Interface: 16 inputs / 6 relay outputs
• USB Interface: 2 x USB 2.0 (front), 2 x USB 3.0 (rear)
• AI Features: Face recognition, multi-objective recognition, perimeter protection, smart search, and VCA alarm linkage
• Power Supply: AC100 ~ 240V, ≤15W (without HDD)
• Operating Conditions: -10ºC ~ 50ºC (14°F ~ 122°F), 10%-90% Humidity
• Dimensions: 440 × 433.5 × 93 mm (17.32 × 17.1 × 3.66 inch)
• Weight: 7.2 kg (15.87 lb) without HDD

Package Includes: NVR Unit, Power Adapter, User Manual
