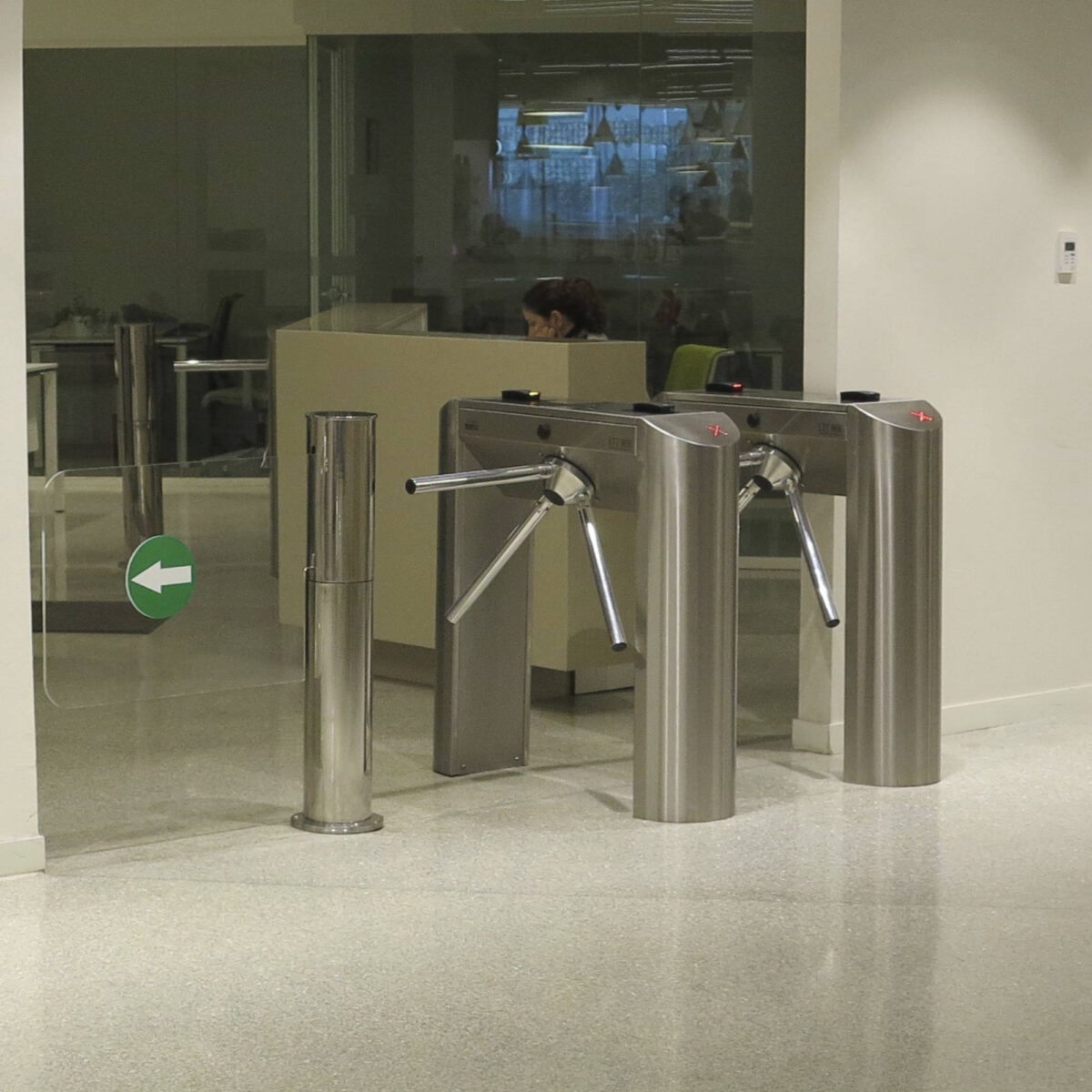

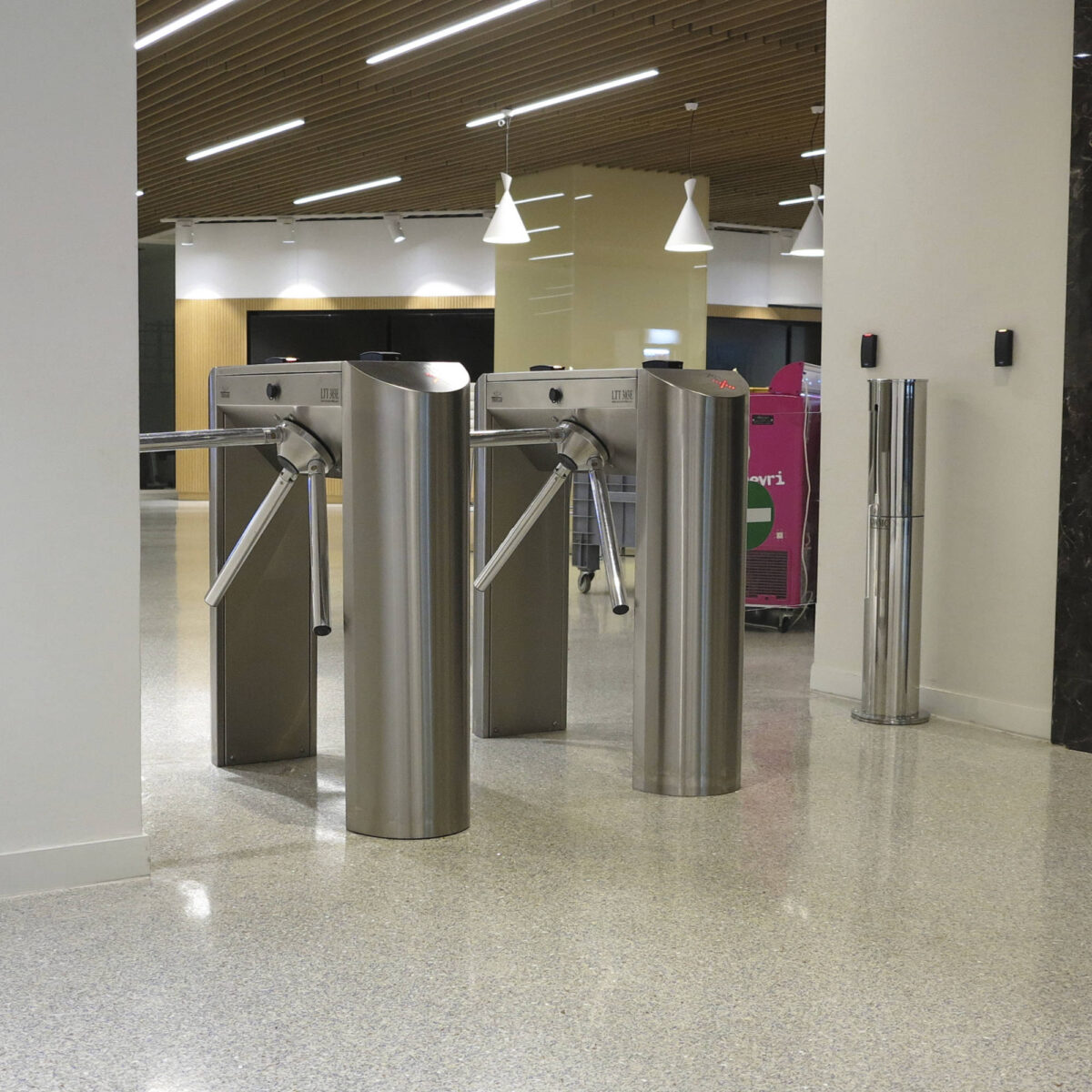

TANSA LTT 303 E Tripod Turnstile – Cylindrical Stainless Steel, Bidirectional, Fail-Safe, Emergency Drop Arm

Operation:

• Adjustable Manual Passage: Allows control of passage direction, easily adjustable to either direction.

Frame:

• Material: Cylindrical, two-legged frame made of AISI 304 quality stainless steel.

• Optional: Can be upgraded to AISI 316 quality stainless steel for enhanced durability and corrosion resistance.

Core and Arms:

• Core: CNC-machined aluminum cast core for precision and durability.

• Arms: Polished Ø 40×2.5 mm aluminum arms.

• Optional: Stainless steel arms for increased strength and aesthetic appeal.

Functions:

• Passage Information:

  • NC (Normally Closed) or NO (Normally Open) for controlling the passage state.

• Passage Time: Adjustable to accommodate different flow speeds.

• Memory Mode: Retains configuration settings for automatic adjustments.

• Audio Warning: Provides audio feedback when a passage occurs.

• Adjustable Passage Direction: Allows flexible direction control as per operational needs.

Mechanism:

• Material: Built with AISI 304 quality stainless steel for strength and longevity.

• Fail-Safe: In the event of a power failure, the arms will drop, ensuring the turnstile remains open.

• Optional: Fail Lock for situations where locking is preferred during power loss.

Emergency Mode:

• Emergency Activation: Arms automatically fall down when a signal is received from a fire detection system for safe and quick evacuation.

• Optional: Drop Arm for rapid exit in emergency situations.

Indicators:

• Direction LED Indicators: LED lights indicate the passage direction for user clarity.

• Optional: Upper Lid for additional visual indicators or for aesthetic enhancement.
