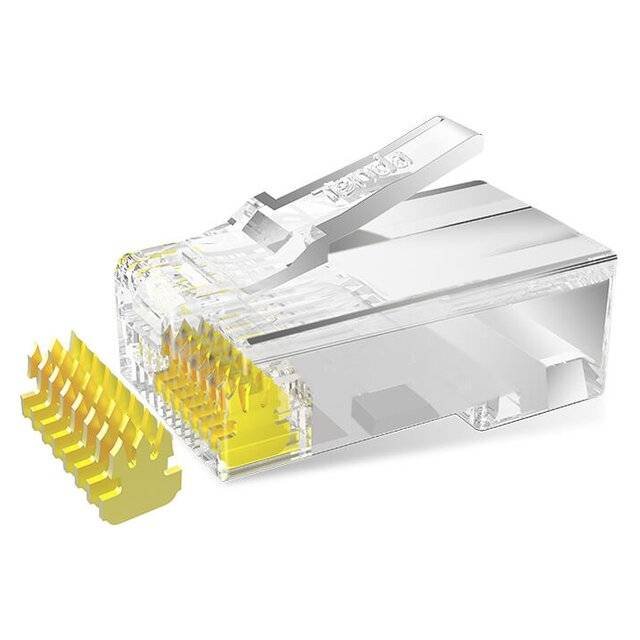

Tenda CAT-6 Connector [TEH60510]Tenda CAT-6 Connector [TEH60510]
22,120 د.ع
غير متوفر في المخزون
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
الوصف
Material

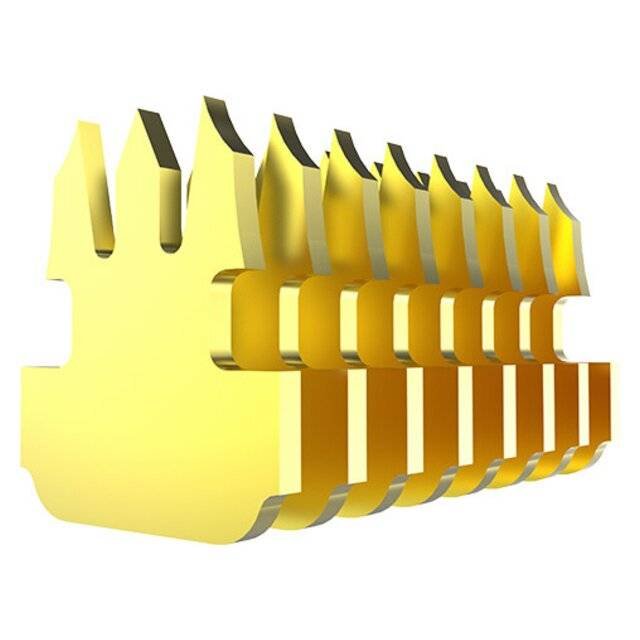

- Contacts : Phosphor Copper 50u
- Housing : PC
Electric Characters
- Rated Current : 125V AC, 1.5A@25℃
- Contact Resistance : 20mΩ Max
- Insulation Resistance : 500MΩ Min，100V DC/min
- Voltage Proof : 1000V AC/1 minute no breakdown
Mechanical Characteristics
- Insertion Force&Withdrawal Force : 30N Max.
- Durability : 750 Cycles Min.
Others
- Operation Temperature : -40℃~ 80℃
- Standard&Protocol : ANSI/TIA-568-C.2、ISO/IEC 11801、GB50311 – 2007
- Size : 22.45*11.68*8mm
