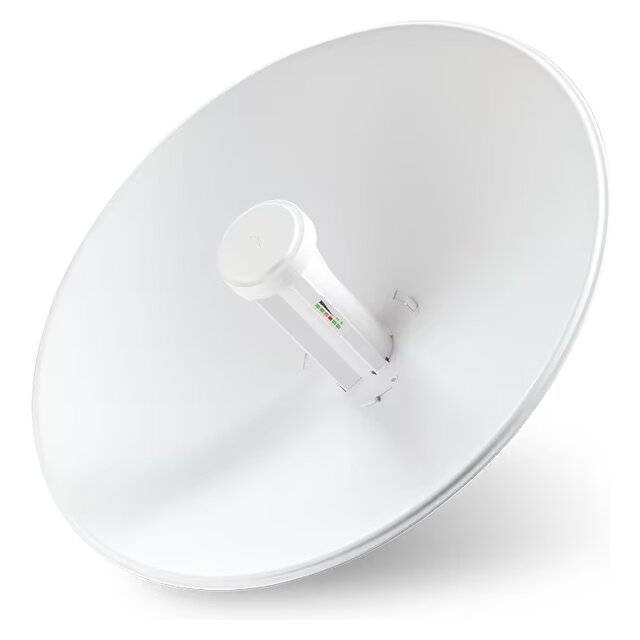

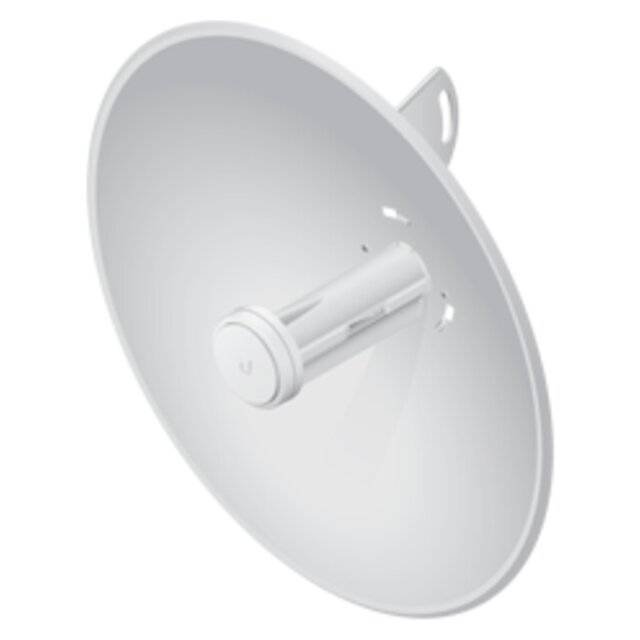

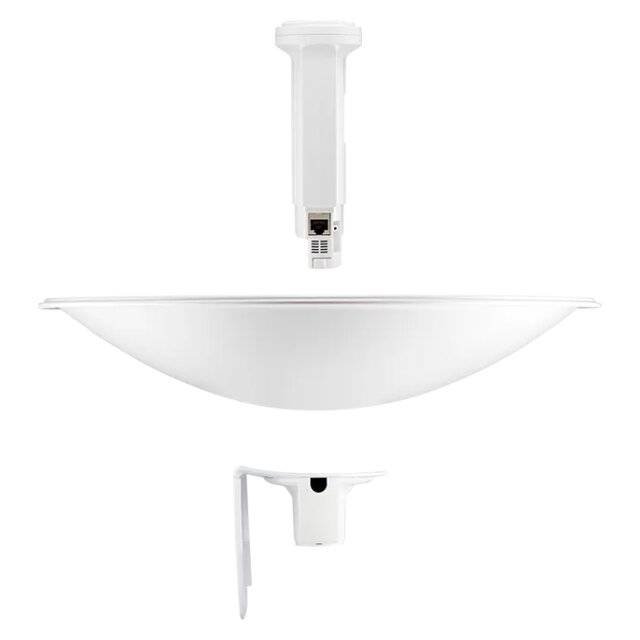

Ubiquiti PowerBeam M5 400mm (PBE-M5-400)Ubiquiti PowerBeam M5 400mm (PBE-M5-400)

Technical Specifications

Mechanical

• Dimensions : 420 x 420 x 275 mm (16.54 x 16.54 x 10.83″)
• Weight : 1.75 kg (4.8 lb)
• Enclosure material : UV-stabilized plastic
• Mounting : Pole mount kit (Included)
• Wind survivability : 200 km/h (125 mph)
• Wind loading : 342.5 N @ 200 km/h (77 lbf @ 125 mph)

Hardware

• Networking interface : (1) GbE RJ45 port
• Power method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power supply : 24V, 0.5A Gigabit PoE adapter (Included)
• Max. power consumption : 8W
• Max. TX power : 26 dBm
• Gain : 25 dBi
• ESD/EMP protection : Air/contact: ± 24 kV
• LEDs : (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs : Software-adjustable to
• correspond to custom RSSI levels
• RoHS compliance : Yes
• Salt fog test : IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G method 509.5
• Vibration test : IEC 68-2-6
• Temperature shock test : IEC 68-2-14
• UV test : IEC 68-2-5 at 40° C (104° F)
• Equivalent: ETS 300 019-1-4
• Wind-driven rain test : ETS 300 019-1-4
• Equivalent: MIL-STD-810 G method 506.5
• Operating temperature : -40 to 70° C (-40 to 158° F)
• Operating humidity : 5 to 95% noncondensing
• Certifications : CE, FCC, IC

System

• Gain : 22 dBi
• Channel sizes : 5/8/10/20/30/40 MHz
• Polarization : Dual linear
• Operating Frequency (MHz)
• Worldwide : 5170 – 5875 MHz
• US/CA : 5725 – 5850 MHz
