Yokogawa AQ1210D OTDR Tester | SM/MM, 1310/1550/850/1300nm | Access/LAN Model with Multi-Touch Display and Long Battery Life

Yokogawa AQ1210D OTDR Optical Time Domain Reflectometer

The AQ1210D model offers powerful dual-mode fiber testing in a compact form factor. Supporting both single-mode and multimode fiber types, it’s tailored for LAN and access network applications requiring a versatile, portable OTDR.

Key Features:

• Wavelengths: 1310 / 1550 / 850 / 1300 nm
• Dynamic Range: 37/35 dB (SM), 25/27 dB (MM)
• Event Dead Zone: 0.75 m (SM), 0.5 m (MM)
• Attenuation Dead Zone: 4 m (SM), 2.5 m (MM)
• Sampling Resolution: 5 cm (SM), 2 cm (MM)
• Supports both SC/APC and LC/UPC connectors
• Battery Life: 10+ hours | Quick boot under 10 seconds
• Storage: Internal and USB external storage supported

Advanced Features:

• Dual-mode OTDR testing for SMF & MMF

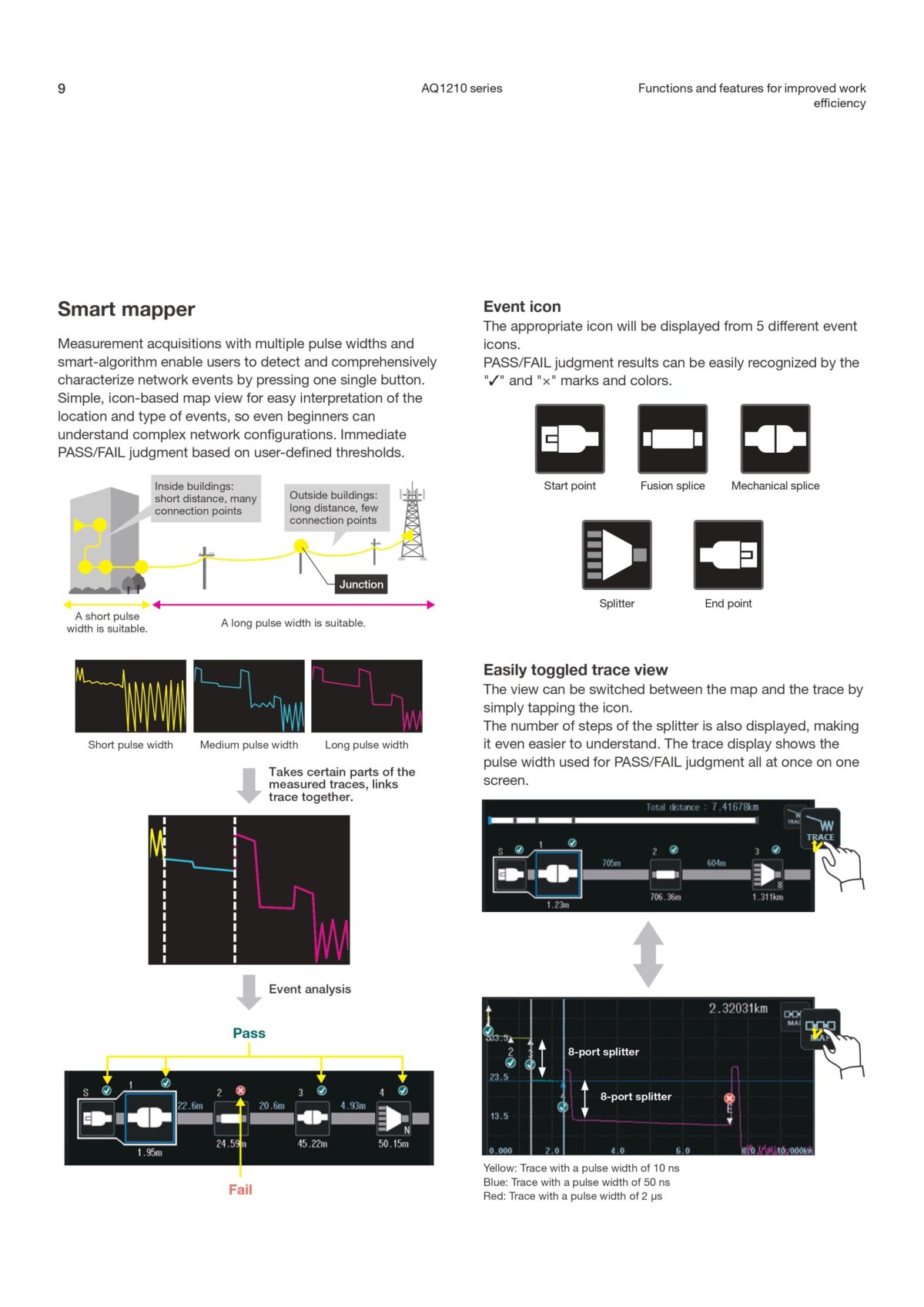

• Built-in Smart Mapper and Auto Event Analysis

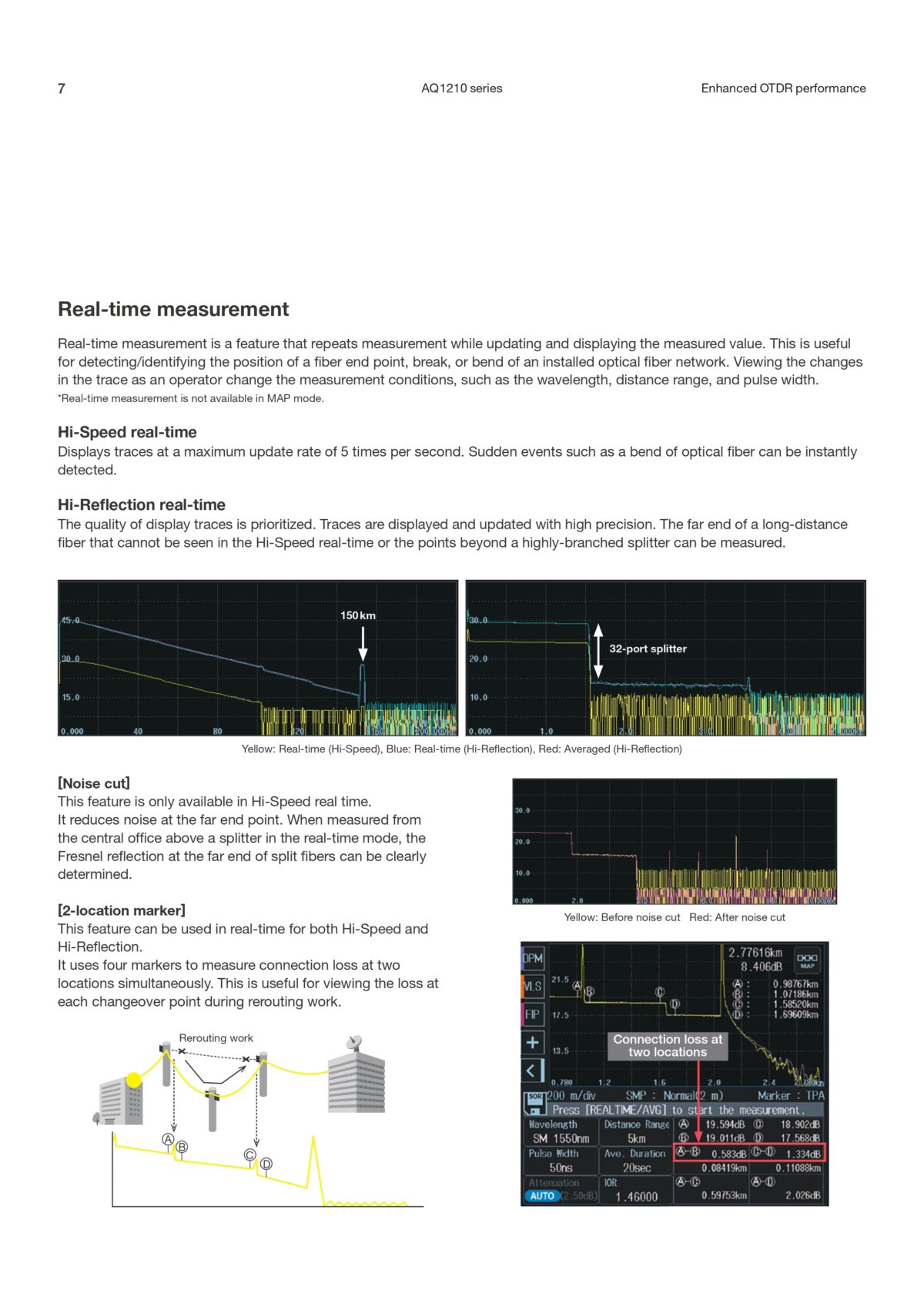

• Real-time trace viewing with noise cut and dual marker
• Multi-core fiber management with up to 2000 cores

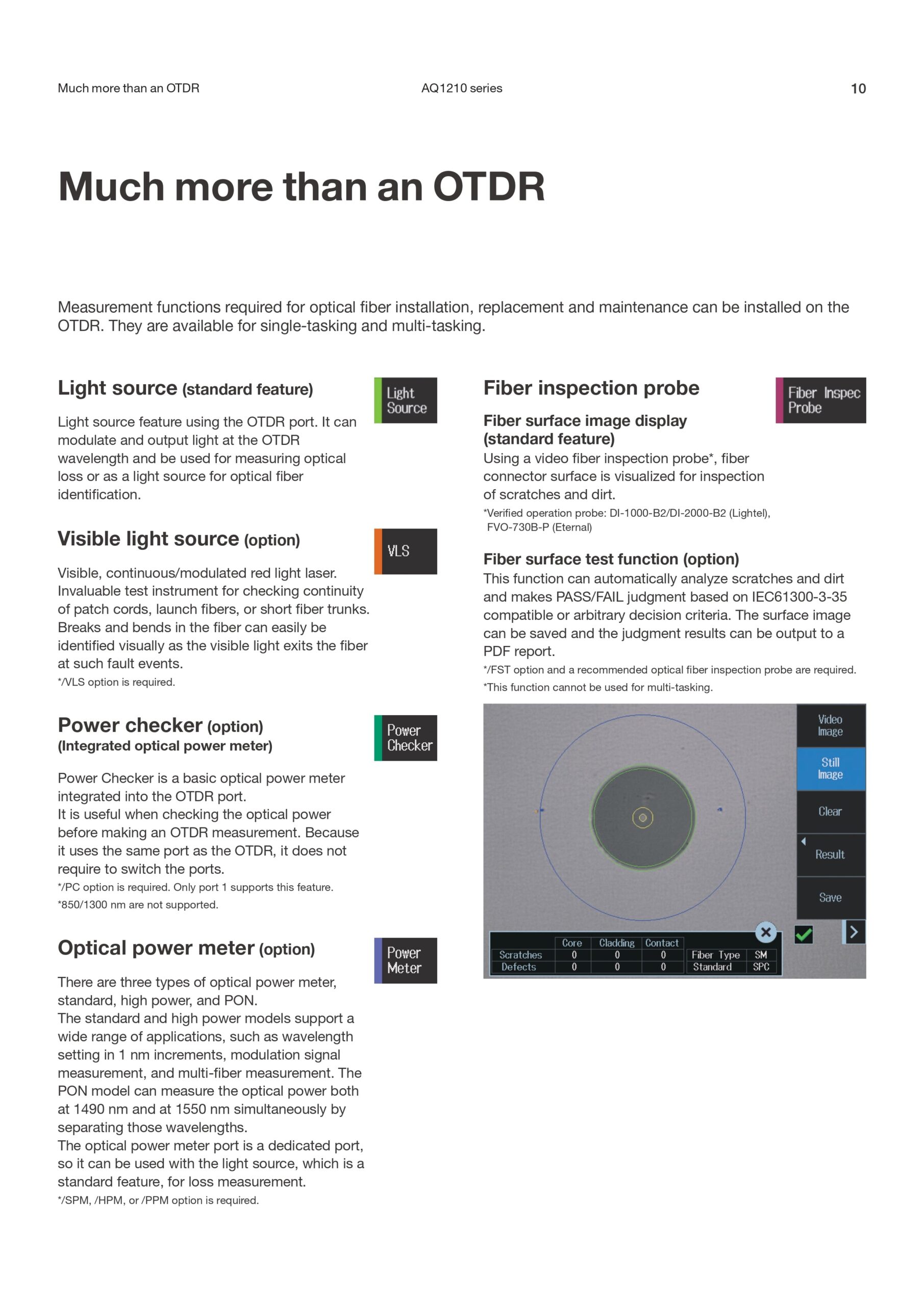

• Optional Fiber Surface Testing, Power Checker, and VLS

Built for field technicians who demand speed, accuracy, and multi-fiber flexibility, the AQ1210D sets the benchmark in access and enterprise optical testing.
